 BAR Series Bar
Graph Process Displays
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features
|

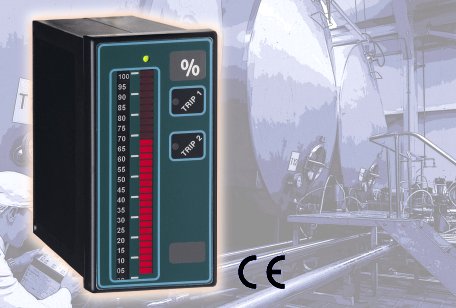

Description Compact, economical & versatile. Laurel's BAR Series Bargraph Process Displays utilize a 1/8 DIN case like most digital panel meters and fit in the same 1/8 DIN size panel cutout. The bargraph is constituted of 30 LED elements, which can be red or green. The display can be set up with a moving dot, for example for position monitoring, or in the traditional accumulating bar format, for example to indicate tank level. Please contact Laurel Electronics for special scales for horizontally mounted displays.
For process signals. The BAR Series Displays accept all popular process signals, such as 4-20 mA, 0-20 mA, 0-10 mA, 1-5 V, 0-10 V, and -5 to +5 V (to be requested at time of ordering). A bargraph process meter can be combined with a digital process meter to provide both graphical and numerical representations of the same signal. Transducer excitation standard. A 15 Vdc, 30 mA transducer excitation output is standard and can eliminate the need for an expensive external power supply. Optional Alarms. Two 5A, 250 Vac relay outputs are optional for alarm or setpoint control. The alarms have a failsafe (de-energize on trip) changeover output and an LED to show relay status. The alarms are supplied in HI-LO format, but can easily be altered to HI-HI or LO-LO. There's also a "pump-control" mode, where the low alarm will latch, and will only reset when the input exceeds the high alarm limit. |
Specifications
| Input ranges | 4-20 mA, 0-20 mA, 0-10 mA, 1-5V, 0-10V, -5 to +5V Specified at the time or order. |
|
Accuracy at 25ºC |
0.5% of range ±
1 segment 1 part in 30 100 ppm / ºC 1 minute 70 dB, DC to 450 Hz 55 dB, 50 or 60 Hz |
|
Format |
30 LED segments with power-on indicator. Red or green. 75 mm (3.0") |
|
Format |
HI-LO (default), HI-HI, LO-LO, or pump control. Red LED illuminates when relay de-energizes. Changeover, Form C, rated 5 A, 250 Vac, resistive. ±1% of range |
| Voltage options Power consumption |
110 Vac, 230 Vac, 24 Vac, 48 Vac, 5 Vdc, 11-30 Vdc 3 W typ. |
| Voltage Current Accuracy |
15
Vdc 30 mA (current limited) ±20% |
| Bezel dimensions Panel cutout Depth behind panel Width behind panel Weight |
48 x 96 mm (1.89" x 3.78"), H x W. 45 x 92 mm (1.77" x 3.62"), H x W 125 mm (4.92"), including connectors 110 mm (4.33") 300 g (11 oz) |
| Operating
Temperature Storage Temperature Relative Humidity Case material Protection |
0°C to
50°C (32°F to 122°F) -40°C to 85°C (-40°F to 185°F) 0-85% RH, non-condensing 94V-1, UL rated Noryl NEMA-12 (IP54) when panel mounted NEMA-4 (IP65) with optional IPC Splashproof cover. |
Ordering
Guide
BAR Series Bargraph
Process Displays
| Create a model
number in this format: BAR2020P, BOX1. This example calls out a BAR
Series Bargraph Process Display with red LEDs, 110 Vac power, two 5A
relays for setpoint control or alarm, vertical format, process input with
default scaling of 4-20 mA = 0-100%, and optional wall mounting
polycarbonate enclosure sealed to NEMA-4X. Includes plug-in screw terminal
connectors. |
|
Display Type |
BAR Series Bargraph Display. | $325 | ||
|
Display Color |
1 Green LEDs. 2 Red LEDs. |
15 NC |
||
| Power |
0 95 to 265 Vac. 1 11 to 30 Vdc. |
NC $45 |
||
|
Setpoint Output |
0 None. 1 Two 5A Contact Relays. |
NC $45 |
||
| Format |
0 Vertical Format. 1 Horizontal Format. |
NC NC |
||
|
Signal Input |
Process Signals (e.g., 4-20
mA, 0-5 V, etc.) P Default Scaling. 4-20 mA = 0-100%. P1 Custom Scaling. In the write-in field of your invoice, specify min input, min reading; max input, max reading. 15 Vdc excitation. |
NC $15 |
||
|
Add-on Options |
|
$40 $140 $180 |
 |
