GRAND Series Large Digit Displays
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

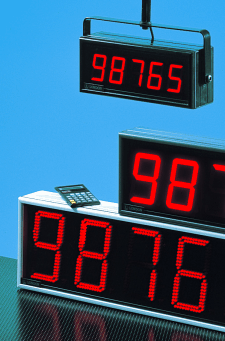

Description Oversize digits for long viewing distances. Grand Series large digit displays are your flexible solution when a display needs to be viewed over distances as long as 320 feet (100 m). A rule of thumb is that viewing distance in feet is 40 times the digit height in inches, or in metric terms, that viewing distance in meters is digit height in millimeters divided by 2. Four digit heights are available: 57 mm (2.2"), 102 mm (4.0"), 144 mm (5.7"), and 200 mm (7.9"). Solid segments are used for normal brightness 2.2" and 4.0" digits. Individual 5 mm LEDs are used for larger digits and outdoor brightness versions. Versions for indoor industrial environments. Depending on the selected digit size and mounting location, a Grand Series display with normal brightness LEDs can be read across an entire plant floor, keeping the workforce aware of important variables without having to leave their work areas to view a small computer screen or control panel. Sealed to IP65 (NEMA-4X), Grand Series Displays are complete functional units, with all the necessary signal conditioning, power supply and display circuitry. Just apply power (95-265 Vac or optionally 11-30 Vdc), connect your input signal, and display your reading. There is a choice of mounting options: panel mount, wall mount, pole mount, or suspension mount. Versions for outdoor locations. Grand Series Displays are available in outdoor versions complete with outdoor brightness LEDs and an IP65 (NEMA-4X) rated weather cowl. They can be read across an industrial yard, parking lot or roadway, for example to display vehicle load or the number of available parking spaces.
Signal options. Grand Series Displays are available with input circuitry for process signals (e.g., 4-20 mA), load cell / weight, rate / frequency, totalizing, clock, elapsed time, and serial data. For example, in a plant environment, a large-digit display can show process variable such as temperature or pressure, or throughput related parameters such as flow rate, line speed, number of units produced, or elapsed time. The display of temperature requires an external 4-20 mA transmitter or a Laureate DPM with a linearized 4-20 mA analog output. As an alternative to displaying sensor data, Grand Series Displays can display a number transmitted as serial data from a computer or PLC. Output options are RS-232/422/485 serial data and dual 2A relays for alarm. Programming is by means of a Remote Programmer, which provides three contact switches labeled MENU, SELECT and INCR. The Remote Programmer utilizes a cord, avoiding the need to climb a ladder to access the display. |
Display Functions
| Process Signal | |
|
Number of digits Display format Signal types A/D resolution Accuracy Excitation output Special features |
5 -19999 to 99999, digitally scalable. 4-20 mA, 0-20 mA, 1-5 V, 0-10 Vdc 1 part in 19999 ±0.02% of range 13 Vdc at 60 mA, non-isolated Selectable filtering. Remote scaling. Last-digit round-off (or count-by) in steps of 1, 2, 5 or 10. Remote contact auto-tare. |
| Load / Weight / Strain Gauge | |
| Number of
digits Display format Signal types A/D resolution Accuracy Excitation output Special features |
5 0-99999, digitally scalable. Direct connection to load cells or strain gages. -19999 to 99999 ±0.02% of range 5 Vdc at 60 mA, non-isolated. Selectable filtering. Remote scaling. Last-digit round-off (or count-by) in steps of 1, 2, 5 or 10. Remote contact auto-tare. |
| Rate / Frequency | |
| Number of
digits Display format Signal type Max frequency Accuracy Crystal tempco Input resistance Excitation output |
5 -19999 to 99999, digitally scalable. NPN, PNP, 5V TTL/CMOS, 24V pulses, contact closures. 10 kHz without debounce, < 10 Hz with debounce. 0.01% of range 20 ppm/ºC 2200 ohms 13 Vdc at 60 mA, non-isolated. |
| Totalizer | |
| Number of
digits Display format Signal type Max frequency Accuracy Input resistance Excitation output Special features |
5 or 7 -19999 to 99999 or -1999999 to 9999999, digitally scalable. NPN, PNP, 5V TTL/CMOS, 24V pulses, contact closures. 10 kHz without debounce, < 10 Hz with debounce. No scaling or offset errors. 2200 ohms 13 Vdc at 60 mA, non-isolated. Zero & scale adjustable remotely. Divide-by or multiply-by scale factors available. Decimal point position selectable. |
| Time-of-Day Clock | |
| Number of
digits Display format Time triggers Time base Special features |
4 or 6 plus
colon dividers. HH:MM or HH:MM:SS NPN, PNP, 5V TTL/CMOS, 24V pulses, contact closures. Crystal with 20 ppm/ºC tempco. Also accepts serial data. |
| Elapsed Timer | |
| Number of
digits Display format Time triggers Time base Special features |
4 or 6 plus
colon dividers. MM:SS, HH:MM, HH:MM:SS NPN, PNP, 5V TTL/CMOS, 24V pulses, contact closures. Crystal with 20 ppm/ºC tempco. Also accepts serial data. |
| Serial Data Input | |
| Number of
digits Display format Data types Data rates Data format Handshake Special features |
5 or 7 0-99999 or 0-9999999 RS-232, RS-422, RS-485, 20 mA TTY (jumper selectable). 300, 600, 1200, 2400, 4800, 9600 bps (jumper selectable). 8 data bits, no parity, 1 or more stop bits. Not required. Unit always ready for data. May be user configured to display sub-strings. Profibus version available with digit heights above 57 mm. |
Dimensions & Weight
|
Digit height |
57 mm 2.2" |
102 mm 4.0" |
144 mm 5.7" |
200 mm 7.9" |
| Case WxH, 5 digits | 288x120 11.3"x4.7" |
480x168 18.9"x6.6" |
624x192 24.6"x7.6" |
824x248 32.4"x9.8" |
| Case WxH, 7 digits | 384x120 15.1"x4.7" |
672x168 26.4"x6.6" |
864x192 34.0"x7.6" |
1140x248 44.9"x9.8" |
| Case depth | 90 mm 3.54" |
90 mm 3.54" |
90 mm 3.54" |
90 mm 3.54" |
| Weight, 5 digits | 2.5 kg 5.5 lbs |
4.5 kg 9.9 lbs |
5.5 kg 12.1 lbs |
7.0 kg 15.4 lbs |
| Weight, 7 digits | 3.0 kg 6.6 lbs |
5.0 kg 11.0 lbs |
6.0 kg 13.2 lbs |
8.9 kg 19.6 lbs |
General Specifications
| Relay Outputs (optional) | |
| Number of relays Relay type Contact rating Relay action |
2 Single pole, single throw (SPST). 2A at 250 Vac, resistive load. Selectable normally open or normally closed. Selectable HI or LO alarm. Adjustable hysteresis. |
| Serial Data Output (optional) | |
| Signal type Output rate Data format Data rate Handshake |
RS-485 1 sec intervals 1 start bit, 8 data bits, 1 stop bit. 300, 1200, 2400, 9600 bps (selectable) Not required. Unit always ready for data. |
| Remote Programmer | |
| Number of buttons Switch action Switched signal |
3 Normally open, momentary close. 5 Vdc at 1 mA |
| Power | |
| Voltage Power consumption |
95-265 Vac or 11-30 Vdc (as
ordered) 20 W typical |
| Mechanical | |
| Case material Gasket material Sealing screws |
uPVC Neoprene Stainless steel |
| Environmental | |
| Operating temperature Storage temperature Humidity, 2" - 6" digit heights Humidity, 8" - 11" digit heights |
-10 to +50ºC (14 to 122ºF) -14 to+60ºC (0 to 140ºF) 0-100% RH. Sealed to IP65 (NEMA-4) 0-95% RH. Sealed to IP54 (NEMA-12) |
|

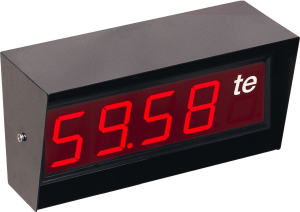

Weather cowl option |
|
|
|
|
|
An example of a large display |
|
|
|
This panel provides collection and load information to truck drivers. It contains two daylight viewable displays with 6" high digits, legible from 240 feet away. The displays show data values transmitted over an RS-422 data link from a central PLC. |
Ordering
Guide
GRAND Series Large Digit Displays
|
Base Model |
G02 G04 G06 G08 |
2.2" Digit Height 4.0" Digit Height 5.7" Digit Height 7.9" Digit Height |
$1040 |
$1,500 |
$1,735 |
$2,275 |
|
Display Brightness |
0 1 |
Normal Indoor brightness Daylight viewing brightness |
NC 130 |
NC 130 |
NC 130 |
NC 130 |
| Power |
0 1 |
95-265 Vac 11-30 Vdc |
NC 120 |
NC 120 |
NC 120 |
NC 120 |
| Output |
0 1 2 |
None Two 2A Relays RS-422 Ouput |
NC 110 110 |
NC 110 110 |
NC 110 110 |
NC 110 110 |
| Mounting |
0 1 2 3 4 5 6 7 |
Black panel

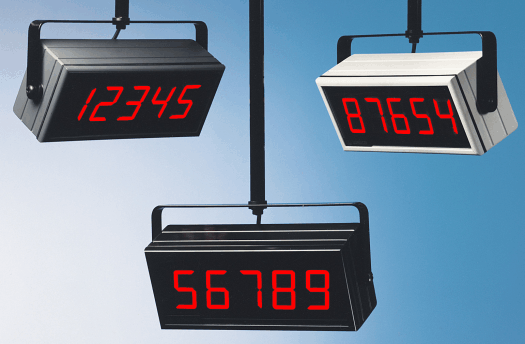

mount White panel mount Black wall mount White wall mount Black suspension mount White suspension mount Black Weather Cowl for 4 or 5 Digits Black weather Cowl for 6 or 7 Digits |
NC NC NC NC NC NC 230 310 |
NC NC NC NC NC NC 310 360 |
NC NC NC NC NC NC 360 415 |
NC NC NC NC NC NC 415 465 |
|
Input Type |
SER5 SER7 CLK4 CLK6 TIM4 TIM6 P P1 SG SG1 TOT5 TOT7 FR |
5-Digit Display, Serial ASCII Input 7-Digit Display, Serial ASCII Input 4-Digit Clock Display, HH:MM 6-Digit Clock Display, HH:MM:SS 4-Digit Timer Display, HH:MM 4-Digit Timer Display, HH:MM:SS 5-Digit Process Signal, 4-20 mA = 0-10000 5 Digit Process Signal, Custom Scaling Specify min input, min reading, max input, max reading. 5-Digit Strain Gage / Load Cell, 0-20 mV = 0-10000 5-Digit Strain Gage / Load Cell, Custom Scaling. Specify min input, min reading, max input, max reading. 5-Digit Display, Totalizer 7-Digit Display, Totalizer 5-Digit Scalable Ratemeter |
NC 125 40 155 70 190 110 135 125 150 125 245 125 |
NC 180 40 215 70 245 110 135 125 145 125 300 125 |
NC 245 40 275 70 275 110 135 125 150 125 350 125 |
NC 520 40 540 70 590 110 135 125 150 125 640 125 |
| Add-on | GRP | Remote Programmer (required) | 145 | 145 | 145 | 145 |
