Remote & Large Digit Displays
|
|||||||||||||||||||||||
|
Remote and Large Digit
Displays, as defined in this web page, are numeric displays that are
driven by a
serial signal from a computer, programmable controller, or other
instrument. Digit heights can range from 0.56" (14.2 mm) to
7.8" (200 mm).

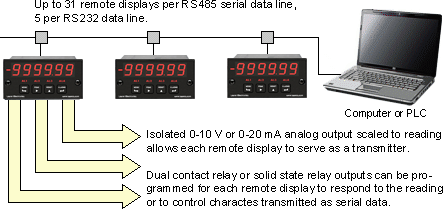

Laureate remote displays, with a digit height of 0.56", are
similar to a digital panel meter or counter in appearance. Up to 31
Laureate remote displays can be digitally addressed on the same line, and
an isolated analog output or relay outputs can be tied to the reading of
the remote.
|
| 1. |
Laureate 6-digit
Remote Displays Similar to a digital panel meter or counter in appearance, but driven by the RS-232 or RS-485 output from a computer, PLC, or instrument. Up to 31 remotes can be digitally addressed on the same serial data line. The displays can be in the same control panel as the data source, or be distributed across the plant floor. Optional isolated analog output and relays tied to the reading can provide alarm or control. Six 0.56" (14.2 mm) high digits, 1/8 DIN case. |
|
 |
||
| 2. |
Grand Series "Large Digit"
Remote Displays 5-digits (Model SER5) or 7-digits (Model SER7) driven by the RS-232, RS-422, RS-485 or 20 mA TTY serial signal from a computer, PLC, or instrument. Large-digit displays with a digit height of 2.2" (57 mm), 4.0" (102 mm), 5.7" (144 mm), or 7.9" (200 mm) for long viewing distances. Optional relays and data I/O. Choice of display brightness and cases for indoor or outdoor mounting. |
|
