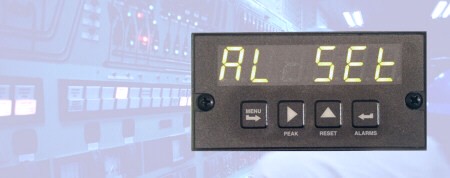

Digital Panel Meters for Serial Input 6-Digit and Remote Display Applications

Serial Input 6-Digit Remote Display Digital Panel Meter Frequently Asked Questions

What serial protocols do these meters typically support?

These meters commonly support RS-232 for point-to-point connections and RS-485 for multi-drop networks, often using the Modbus RTU protocol, which is widely supported across PLCs, controllers, and other industrial devices.

What serial communication settings need to match between the meter and the sending device?

Baud rate, parity, data bits, and stop bits must all match exactly between the meter and whatever device is sending it data, along with the correct device address on a multi-drop RS-485 network. A mismatch in any one of these settings will typically prevent communication entirely.

Can multiple meters be connected on the same RS-485 network?

Yes, RS-485 supports multi-drop networking, so multiple meters (or a meter alongside other RS-485 devices) can share the same two-wire bus, as long as each device on the network has a unique address so the master can address them individually.

What is the maximum distance for a remote display connected via serial communication?

RS-485 supports significantly longer cable runs than RS-232 — often up to 4,000 feet under good conditions — though actual achievable distance depends on baud rate, cable quality, and the number of devices on the bus, with higher baud rates generally reducing the practical maximum distance.

Do I need termination resistors on an RS-485 network?

Yes, for longer cable runs. 120-ohm termination resistors are typically required at both physical ends of an RS-485 bus to prevent signal reflections that can cause communication errors, particularly as cable length or baud rate increases.

Can the meter's displayed data source be switched between a local sensor input and a serial input?

This depends on the specific model — some meters are dedicated serial-input-only remote displays, while others can be configured to display either a locally connected sensor signal or data received over serial communication, so this should be confirmed against the specific model's capabilities.

What alarm and output options are available on a serial input meter?

These meters commonly support programmable high/low alarm relays and an isolated analog output, allowing the meter to trigger a local alarm or feed an analog signal based on the value received over its serial input, in addition to simply displaying that value.

Can the 6-digit display show negative values or values with a decimal point?

Yes, these meters typically support a programmable decimal point position and can display negative values, allowing the display format to be configured to match whatever engineering unit and precision the source data represents.

Is isolation available on the serial communication port?

Isolated communication ports are commonly available and help protect both the meter and the connected network from ground loops or transients, which is particularly relevant on longer RS-485 runs connecting equipment across different parts of a facility with potentially different ground references.

Can this meter be used purely as a remote display with no local measurement capability at all?

Yes — dedicated remote display models exist specifically to receive and display a value from another device over serial communication, without any local sensor input capability, which is the intended use case for centralizing a reading at a second, more visible or accessible location.

Serial Input & Remote Display Questions From the Field

Why does my Modbus device time out with no response even though I've verified the baud rate and slave address?

This is one of the most frequently reported Modbus issues, and field guidance consistently points to RS-485 A/B wire polarity as a commonly overlooked cause — there's no universal industry standard for which terminal is labeled A versus B, so what one manufacturer calls A(+), another may label as B(-). When all settings check out correctly but communication still fails, swapping the two RS-485 signal wires is a safe, commonly recommended troubleshooting step that resolves the issue a meaningful portion of the time.

Should signal ground be connected between RS-485 devices, or is the differential signal enough on its own?

In theory, RS-485's differential signaling doesn't strictly require a common ground reference, but in practice, field experience shows that a floating common-mode voltage between devices — especially on longer runs or when connecting equipment from different manufacturers — can overwhelm the differential signal and prevent reliable communication. Running a dedicated ground/common wire between all devices on the bus is a standard practice to avoid this.

My timeout errors seem to happen more at higher baud rates but work fine at 9600 — why?

This has been documented as a real hardware limitation on some USB-to-RS485 adapters, where the adapter's transmit-enable timing has a bug that de-asserts too late at higher speeds, causing the first byte of a response to be missed — this shows up as intermittent timeouts or unreliable communication specifically at higher baud rates while lower rates work fine. Testing at a lower baud rate as a diagnostic step, and considering a different adapter if the issue is speed-dependent, is the recommended approach.

How long should I set my communication timeout, and could a too-short timeout be causing my failures?

This is a commonly overlooked variable — some devices add processing delay before responding beyond the minimum time theoretically required to transmit the response frame, so a timeout value set too aggressively short can cause failures even when the device would have eventually responded correctly. Starting with a more generous timeout (several hundred milliseconds to a couple of seconds) and tuning it down once communication is confirmed working is a standard field practice.

What does it mean if my device shows a yellow blinking indicator but no communication is happening?

On devices with a status indicator, a specific blink pattern indicating the device is receiving but not properly responding often points to an address mismatch — the device is seeing valid Modbus traffic on the bus, but not traffic addressed specifically to its own configured slave address. Double-checking the actual configured address on the device itself (via DIP switches or its own configuration menu), rather than assuming a default address, resolves this class of issue.

Can two devices trying to respond at the same time on the same RS-485 bus cause intermittent communication failures?

Yes — this is a documented cause of bus contention: if two devices on the same bus happen to have the same address, or if a master polls devices faster than they can respond, response messages can collide on the shared bus and corrupt or prevent successful communication. Confirming every device on the bus has a genuinely unique address, and that the master isn't polling faster than devices can reliably respond, addresses this.

Why does communication work fine with one device on the bus but fail once I add more devices?

This pattern often points to address conflicts, bus loading, or termination issues that only manifest once the network complexity increases — field guidance recommends reducing the system to a single master and a single slave with a short cable as a baseline test, confirming that works, then adding devices back one at a time to isolate exactly which addition introduces the failure.

Does the physical distance or number of devices on an RS-485 daisy chain affect the maximum reliable baud rate?

Yes — this has been specifically documented by equipment manufacturers: at a given baud rate, there's a maximum supportable cable distance and device count, and increasing the baud rate (sometimes counterintuitively, to improve throughput and reduce timeout frequency on busy networks) can actually reduce the maximum reliable distance and device count the bus can support. Checking the specific device manufacturer's distance/device-count table for the baud rate in use is worth doing on longer or more heavily loaded networks.
