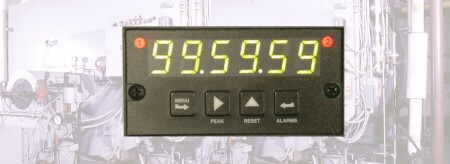

Laureate™ Time Interval Meters
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|
|
![]() |
![]() |
![]()
Features
|
![]()
Description
Display
Other Features and Options
|
![]()
Specifications
| Display | |
| Readout Range Indicators |
6 LED digits, 7-segment, 14.2 mm (.56"), red
or green. -999999 to +999999 Four LED lamps |
| Inputs | |
| Types Grounding Channel A Frequency Channel B Frequency Minimum Signal Maximum Signal Noise Filter Contact Debounce |
AC,
pulses from NPN, PNP transistors, contact closures, magnetic pickups Common ground for channels A & B 0.005 Hz to 1 MHz 0.005 Hz to 250 kHz Nine ranges from (-12 to +12 mV) to (+1.25 to +2.1V). 250 Vac 1 MHz, 30 kHz, 250 Hz (selectable). 0, 3, 50 ms (selectable) |
| Time Interval Mode | |
| Timing Start Timing Stop Periodic Timing Interval Gate Time Time Before Zero Output |
Channel
A pulse, + or - edges |
| Resolution | |
|
0 - 199.999 s |
1
ms |
| Accuracy | |
| Time Base Span Tempco Long-term Drift |
Crystal
calibrated to ±2 ppm |
| Power | |
| Voltage, standard Voltage, optional Frequency Power Isolation |
95-240 Vac ±10% or 90-300 Vdc 12-30 Vac or 10-48 Vdc DC or 47-63 Hz 250V rms working, 2.3 kV rms per 1 min test. |
| Excitation Output | |
| 5
Vdc 10 Vdc 24 Vdc Output Isolation |
5 Vdc ±5%, 100 mA 10 Vdc ±5%, 120 mA 24 Vdc ±5%, 50 mA 50 Vdc to meter ground |
| Analog Output (optional) | |
| Output
levels Compliance Scaling Resolution Isolation |
0-10V,
0-20 mA, 4-20 mA (jumper selectable) 2 mA at 10V (5 kOhm load), 12V at 20 mA (0-60 ohm load) Zero and full scale adjustable from -99999 to +99999 12 bits (0.025% of full scale) 250V rms working, 2.3 kV rms per 1 min test |
| Dual Contact Relay Outputs (optional) | |
| Relay
Type Load Rating Isolation |
Form C 8A at 250 Vac or 24 Vdc 250V rms working, 2.3 kV rms per 1 min test |
| Dual Solid State Relay Outputs (optional) | |
|
Relay Type Load Rating Isolation |
SPST, normally open,
Form A 120 mA at 130 Vac or 170 Vdc, 28 ohms series resistance. 250V rms working, 2.3 kV rms per 1 min test |
| Serial Data I/O (optional) | |
|
Board Selections Protocols Data Rates Digital Addresses Isolation |
RS232, RS485, Modbus RS485 Modbus RTU, Modbus ASCII, simpler Laurel ASCII 300 to 19200 bps 247 (Modbus), 31 (Laurel ASCII), 250V rms working, 2.3 kV rms per 1 min test |
| Environmental | |
| Operating
Temperature Storage Temperature Relative Humidity Protection |
0°C
to 60°C -40°C to 85°C 95% at 40°C, non-condensing NEMA-4X (IP-65) when panel mounted |
| Signal Connections | |
![]() |
|
![]()
| Typical Applications | |
Time Interval Mode for Time Delay |
|
![]() |
For periodic pulses applied to A and B channels, time delays can be measured down to 0.2 µs resolution from the rising or falling edge of A to the rising or falling edge of B (selectable). |
Time Interval Mode for Pulse Width |
|
![]() |
The width of periodic pulses (t1 or t2) can be measured by tying the A and B channels together. As for time delay, readings are averaged over a user-selectable gate time. |
Timing Process Dynamics with a Panel Meter and Time Interval Meter |
|
![]() |
The start and stop pulses used for timing can be generated by the dual relay board in a Laureate panel meter or digital counter. For instance, the start and stop pulse edges can be created as temperature passes two alarm setpoints, or temperature cycles in a hysteresis control mode. |
Replacing an Oscilloscope with a Laureate Time Interval Meter |
|
|
An oscilloscope is great for viewing and timing pulses in a lab. However, in fixed installations where digital timing accuracy and control outputs are required, a low-cost Laureate time interval meter will be the instrument of choice. Resolution to 0.2 µs is feasible. |
Instrumenting a Pulsed Laser System Using Laureate Counters |
|
|
![]()
Ordering
Guide
Laureate™ Time Interval Meters
| Create a model
number in this format: L60101FR. This example calls out a Laureate
counter with a Standard Main Board with red LEDs, 95-240 Vac ±10% power, dual
8A contact relays, no second output, RS-232 serial output,
and a dual-channel frequency signal conditioner. Includes plug-in screw
terminals. |
|
Main Board |
L5 Standard Main Board, Green LEDs. L6 Standard Main Board, Red LEDs. |
$230 $230 |
||
| Note: In addition to A-to-B time interval, the Standard Main Board handles frequency, rate, period, square root of rate, and up or down total. | ||||
| Power |
0 Isolated 95-240 Vac ±10% & 90-300 Vdc 1 Isolated 12-30 Vac & 10-48 Vdc. |
NC $30 |
||
|
Setpoint Output |
0 None. 1 Dual 8A Contact Relays. 2 Isolated Dual Solid State Relays. |
NC $80 $55 |
||
|
Second Output |
0 None. 1 Isolated 0-20 mA & 0-10 V. |
NC $90 |
||
|
Digital Interface |
0 None. 1 Isolated RS-232. 2 Isolated RS-485. 4 Isolated Modbus RS-485. |
NC $60 $80 $90 |
||
| Input Type | FR Dual-Channel Pulse Input Signal Conditioner. | NC | ||
|
Add-on Options |
|
$30 NC $19 $39 $40 $140 $180 |
|
