Model TLS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Features |
|
|
|
|
In many industrial systems, the
same 4-20 mA signal from a transmitter is sent to multiple devices in series,
such as panel meters, chart recorders and PLCs, as shown below. When any device in the loop is removed, fails, or suffers a
wiring fault, as all other devices will then also lose their 4-20 mA signal.

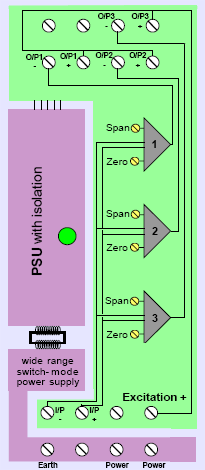

Model TLS Loop Splitter / Retransmitter solves the problem by generating three independent 4-20 mA outputs from a single 4-20mA input. This allows three separate remote devices to be independently fed from one signal. If any output device is removed or fails, the other devices will continue to operate properly. Each output loop has its own zero

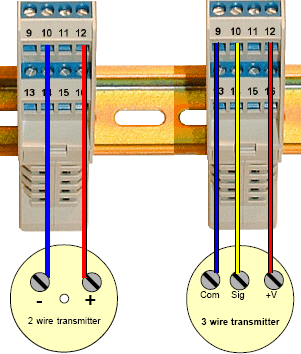

and span controls to allow individual scaling. An unregulated 24 Vdc
excitation output is provided to power a 2-wire transmitter device, such as a
pressure transmitter. Multiple devices can be connected in series in each output
loop, provided that the total resistance per loop is less than 600 Ohms. All output signals
share the same ground. The input and output signals are fully
isolated from power and ground.
|
Several
improvements are offered by the new Model TLS (P/N TIM018) over the
predecessor Model TLS:
Specifications
| Input | |
| Input signal Input resistance Excitation voltage |
4-20 mA, 0-10 mA 50 ohms 20 Vdc nominal, 28 mA max |
| Output | |
| Output signal Span adjustment Zero adjustment Response speed Isolation Drive capacity Accuracy Tempco |
4-20 mA, 0-10
mA ± 9 mA ± 1 mA 200 ms 380V to earth and power (output terminals internally connected) 600 ohms per loop at 20 mA ± 0.1% of span ± 75 ppm/ºC |
| Power | |
| Supply voltage,
Model TLS1 Supply voltage, Model TLS2 Power consumption Connectors |
95-265
Vac |
| Environmental | |
| Working
temperature Storage temperature Humidity Case sealing |
0 to 50ºC (32 to
122ºF), single unit natural ventilation 0 to 40ºC (32 to 104ºF), two stacked units, natural ventilation 0 to 35ºC (32 to 95ºF), three stacked units, natural ventilation -20 to +75ºC (-4 to 167ºF) 0-90% RH, non-condensing IP40 |
| Mechanical | |
| Mounting Dimensions Weight Cable dimensions, max |
35-mm DIN Rail
per
EN50 022 22.5 x 99 x 111 mm (0.9" x 3.9" x 4.4") W x H x D 200 g (7 oz) 4 sq. mm (0.09" diameter, 11 AWG) |
Ordering
Guide
TLS Triple Output 4-20 mA Loop Splitter
/ Retransmitter
|
TLS1 |
Triple Output Loop Splitter Retransmitter, 95-265 Vac power |
$255 |
|
TLS2 |
Triple Output Loop Splitter Retransmitter, 11-30 Vdc power | $280 |
 |
Order from distributors for shipment to USA or Canada. |
 |
Order online for international shipment. |
|
