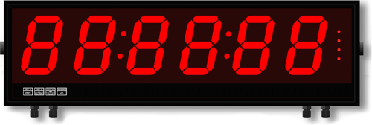

Magna Series Large Digit Display 6 inches (150 mm), 6 Digit Display

Price: $2,015.00

P/N M66MCRMT2

Signal Input (Isolated)

Analog output board

Relay Output Board

Serial Data Output

Case and Mounting

Accessories

Features

6 inch digit height
6 digits with period or color dividers
Choice of normal or outside viewing brightness
Choice of signal inputs and functions
Choice of panel mount, wall mount or suspension mount
Choice of 95-264 Vac or 11-30 Vdc power
Sealed to NEMA-4 (IP65)
Only 3.0" (75 mm) deep
Programmable from front panel
Optional two or four 2A relay outputs, analog output, serial I/O

The Magna Series Large Digit Display with a 6-inch (150 mm) 6-digit configuration is a rugged industrial display engineered for clear data visualization. Featuring solid-segment LEDs for indoor use or optional 5 mm LEDs for outdoor brightness, it supports inputs including RS232/RS485, 4-20 mA, 0-10V, and pulse (0-100 kHz), with a 24V excitation output, 10-point linearization, and digital filtering (0-25s). It includes two or four 2A relays and an analog output, operating on 95-264 Vac or 11-30 Vdc, with an IP65 (NEMA-4X) seal and a temperature range of -40°C to 70°C, plus a heater option. Ideal for production monitoring and process control, it offers customizable LED colors and flexible mounting options.

Viewing distances up to 320 ft (100 m) are achieved with 8" digits. A rule of thumb is that viewing distance in feet is 40 times digit height in inches, or in metric terms, that viewing distance in meters is digit height in millimeters divided by 2.

Four digit heights are available a standard: 57 mm (2-1/4"), 102 mm (4.0"), 150 mm (5.9"), and 200 mm (7.9"). Solid segments are used for normal brightness 2.2" and 4.0" digits. Individual 5 mm LED pixels are used for larger digits and outdoor brightness versions. The number of digits can be 4, 6 or 8, depending on the display function.

Indoor or outdoor viewing: MAGNA Series Displays with normal brightness LEDs can be read over a machine or across a plant floor. Displays with outdoor brightness LEDs can be read across an industrial yard, parking lot or roadway, for example to display vehicle load. A heater option allows outdoor operation in winter in cold climates. Available mounting options are panel mount, wall mount and suspension mount. Environmental sealing to IP65 (NEMA-4X) is standard.

Choice of signal inputs: MAGNA Series Displays are available for different signal types, with can each be associated with 4 or 6 digits. Please click on the links below for detailed information by signal type:

Options available include two or four 2A relays, an analog output, an RS232 or RS485 serial data, and 95-264 Vac or 11-30 Vdc power.

Intuitive setup is normally provided by means of built-in front panel switches, which can be locked. It is also possible to remotely wire four pushbuttons to the display.

MAGNA Series Serial Input Large Digit Displays
Standard Large Digital Displays are available here. Prices are in US dollars and do not include shipping or duty charges (export sales).

Questions about your order? Please email our support@laurels.com
MAGNA units are built to order. MAGNA orders are non-cancelable and non-returnable.

Customized large digit displays are available by special quotation:

LED colors green, blue, white, yellow (not limited to red).
Digit heights of 12", 16", 24" or 32" (not just4", 6" or 8").
2 or 4 solid state relays (not just mechanical relays).
Stainless steel housing (for food processing and pharmaceutical industries).
Explosion-proof stainless steel housing rated for ATEX Zones 2 and 22 (equivalent to Class1 / Div 2).
Custom signs with different colors, with fixed captions, and with multiple numeric display windows.

Serial Data Input
Serial Data Types	RS232 or RS485 (specify at time of order)
Serial Connector	Detachable plug-in screw terminals
Displayed Information	ASCII: Displays any character within 7-segment display limitations. Quant: Displays only numeric ASCII values.
	Qa.Tot: Quantity totalizer. Can be used to accumulate weight values, for example after each batch. Uses a contact closure to trigger addition.
Baud Rate	300 to 115200 baud
Data Format	701, 7e1, 7n2, 801, 8e1, 8n1, 8n2
Termination Character	Hex 00 to FF
Reject Characters	Counted from termination character
Addressing	00 (wildcard) to F7
Process Signal Input
A/D Converter	20-bit resolution
Current Signal Types	0-10 mA, 0-20 mA, 4-20 mA with 33Ω input resistance
Voltage Signal Types	0-5V, 1-5V, 0-10V with 1 MΩ input resistance
Accuracy	± 0.05% of range.
Tempco, Scale	± 25 ppm/°C
Tempco, Offset	± 30 ppm/°C
Excitation	24 Vdc up to 40 mA, or ratiometric 0-10V for slide-wire
Strain Gauge / Load Cell Input
A/D Converter	20-bit resolution
Signal Gain	Suitable for 0.5 mV / V to 4 mV / V load cells
Accuracy	± 0.05% of range.
Tempco, Scale	± 25 ppm/°C
Tempco, Offset	± 30 ppm/°C
Excitation Output	Isolated 10V up to 120 mA to power up to four 350Ω load cells in parallel
Pulse Input for Frequency, Rate, Total
Number of Inputs	4
Signal Types	Configurable for contact closures, NPN or PNP proximity switches, 5V logic pulses, 24V pulses, quadrature
Debounce	Programmable to eliminate false counting from contact bounce.
Timing Reference	Temperature-controlled quartz crystal.
Pulse Input for Clock Operation
Time Reference	Precision, temperature-compensated quartz crystal.
Clock Format	HH:MM or HH:MM:SS
Display
Number of Digits	4 or 6
Digit Height	57 mm (2-1/4"), 102 mm (4.0"), 150 mm (5.9"), or 200 mm (7.9")
Digit Color	Red
Brightness	Variable
Brightness	8.8.8.8. or 8.8.8.8.8.8. (standard)
Clock Format	HH:MM or HH:MM:SS (optional, specify at time of order)
User Controls
Scaling	Digital direct or theoretical scaling with scale & offset.
Filtering	Digital filtering, time constants adjustable from 0 to 25 sec.
Rounding	Selectable last-digit rounding of 1, 2, 5, 10, 20, 50 units.
Linearization	Up to 10 points, direct or theoretical calibration.
Logic Inputs
Font Panel Controls	Calibration, Tare, Reset, Max/Min, Alarms
Logic Functions	Three logic inputs, individually configurable for Hold, Reset, Tare, Peak / Valley, Net/Gross, Memory Address.
Logic Levels	Normally open, NPN or contact closure input to activate. 5V open circuit, 1 mA switched current.
Power
AC Power (standard)	100-240 Vac
DC Power (option)	11-30 Vdc
Max Consumption	30 VA
Analog Output Option
Output Levels	0-20/4-20 mA into 0 to 500Ω, 0.4 μA resolution. 0-10V into loads > 600Ω, 0.2 mV resolution. -10 to +10V into loads > 600Ω, 0.4 mV resolution.
Resolution	16 bits
Accuracy	0.1% of range
Stability	50 ppm/°Cl
Output Isolation	Isolated from input and power
Scaling	Digitally scalable
Special Features	Can be set to operate from net or gross value.
Alarm Output Option
Relay Type	Two or four relays rated 2A, 250VAC, SPDT
Special Features	Adjustable hysteresis
	In-flight compensation facility.
	Energize or de-energize on trip.
	Adjustable timers to set energize and de-energize delays. Can also be set to pulse for applications needing less than 100% duty cycle.
	In-band and out-of-band alarm function.
	Manual and automatic in-flight compensation.
	Can be set to operate from net or gross value.
Serial Data Output Option
Output Types	RS232 or RS485, addressable, on demand or continuous output.
Special Features	Can include time and date with RTC option fitted. Can be set to operate from net or gross value.
Environmental
Storage Temp.	-20°C to +70°C
Operating Temp.	0°C to 50°C, non-condensing. -25°C to 50°C, non-condensing, with MHTR AC heater option.
Sealing	IP65 (NEMA-4) standard, all-round
Connections	M12 compression glands for round cable, diameter 3.0 to 6.5 mm (0.118" to 0.256")
Mounting	Wall mount, suspension mount, panel mount
Approvals
Types	Produced to IPC 610 Class 2 Standard
	UL ISO9001:2008 QA

Serial Data Input
Serial Data Types	RS232 or RS485 (specify at time of order)
Serial Connector	Detachable plug-in screw terminals
Displayed Information	ASCII: Displays any character within 7-segment display limitations. Quant: Displays only numeric ASCII values.
	Qa.Tot: Quantity totalizer. Can be used to accumulate weight values, for example after each batch. Uses a contact closure to trigger addition.
Baud Rate	300 to 115200 baud
Data Format	701, 7e1, 7n2, 801, 8e1, 8n1, 8n2
Termination Character	Hex 00 to FF
Reject Characters	Counted from termination character
Addressing	00 (wildcard) to F7
Process Signal Input
A/D Converter	20-bit resolution
Current Signal Types	0-10 mA, 0-20 mA, 4-20 mA with 33Ω input resistance
Voltage Signal Types	0-5V, 1-5V, 0-10V with 1 MΩ input resistance
Accuracy	± 0.05% of range.
Tempco, Scale	± 25 ppm/°C
Tempco, Offset	± 30 ppm/°C
Excitation	24 Vdc up to 40 mA, or ratiometric 0-10V for slide-wire
Strain Gauge / Load Cell Input
A/D Converter	20-bit resolution
Signal Gain	Suitable for 0.5 mV / V to 4 mV / V load cells
Accuracy	± 0.05% of range.
Tempco, Scale	± 25 ppm/°C
Tempco, Offset	± 30 ppm/°C
Excitation Output	Isolated 10V up to 120 mA to power up to four 350Ω load cells in parallel
Pulse Input for Frequency, Rate, Total
Number of Inputs	4
Signal Types	Configurable for contact closures, NPN or PNP proximity switches, 5V logic pulses, 24V pulses, quadrature
Debounce	Programmable to eliminate false counting from contact bounce.
Timing Reference	Temperature-controlled quartz crystal.
Pulse Input for Clock Operation
Time Reference	Precision, temperature-compensated quartz crystal.
Clock Format	HH:MM or HH:MM:SS
Display
Number of Digits	4 or 6
Digit Height	57 mm (2-1/4"), 102 mm (4.0"), 150 mm (5.9"), or 200 mm (7.9")
Digit Color	Red
Brightness	Variable
Brightness	8.8.8.8. or 8.8.8.8.8.8. (standard)
Clock Format	HH:MM or HH:MM:SS (optional, specify at time of order)
User Controls
Scaling	Digital direct or theoretical scaling with scale & offset.
Filtering	Digital filtering, time constants adjustable from 0 to 25 sec.
Rounding	Selectable last-digit rounding of 1, 2, 5, 10, 20, 50 units.
Linearization	Up to 10 points, direct or theoretical calibration.
Logic Inputs
Font Panel Controls	Calibration, Tare, Reset, Max/Min, Alarms
Logic Functions	Three logic inputs, individually configurable for Hold, Reset, Tare, Peak / Valley, Net/Gross, Memory Address.
Logic Levels	Normally open, NPN or contact closure input to activate. 5V open circuit, 1 mA switched current.
Power
AC Power (standard)	100-240 Vac
DC Power (option)	11-30 Vdc
Max Consumption	30 VA
Analog Output Option
Output Levels	0-20/4-20 mA into 0 to 500Ω, 0.4 μA resolution. 0-10V into loads > 600Ω, 0.2 mV resolution. -10 to +10V into loads > 600Ω, 0.4 mV resolution.
Resolution	16 bits
Accuracy	0.1% of range
Stability	50 ppm/°Cl
Output Isolation	Isolated from input and power
Scaling	Digitally scalable
Special Features	Can be set to operate from net or gross value.
Alarm Output Option
Relay Type	Two or four relays rated 2A, 250VAC, SPDT
Special Features	Adjustable hysteresis
	In-flight compensation facility.
	Energize or de-energize on trip.
	Adjustable timers to set energize and de-energize delays. Can also be set to pulse for applications needing less than 100% duty cycle.
	In-band and out-of-band alarm function.
	Manual and automatic in-flight compensation.
	Can be set to operate from net or gross value.
Serial Data Output Option
Output Types	RS232 or RS485, addressable, on demand or continuous output.
Special Features	Can include time and date with RTC option fitted. Can be set to operate from net or gross value.
Environmental
Storage Temp.	-20°C to +70°C
Operating Temp.	0°C to 50°C, non-condensing. -25°C to 50°C, non-condensing, with MHTR AC heater option.
Sealing	IP65 (NEMA-4) standard, all-round
Connections	M12 compression glands for round cable, diameter 3.0 to 6.5 mm (0.118" to 0.256")
Mounting	Wall mount, suspension mount, panel mount
Meter modifiying options (not shippable separately from meter)
MRDLV	Daylight viewing brightness for operation down to 0°C (32°F) instead of normal indoor brightness.
MHTR	Heater for outdoor operation down to -25°C (-13°F).
MPS2	11-30 Vdc power instead of normal 85-265 Vac power.
UM	Extra case width for 2 blank digits.
	Use UM for units of measure like ºC. Required with M24 for relay, analog output or serial output options. Added at no charge with MHTR for M24 or M44.
Approvals
Types	Produced to IPC 610 Class 2 Standard
	UL ISO9001:2008 QA

Number of Digits & Case Dimensions

Serial Data Input	4 Digits	6 Digits
Serial Data Input
Process, Strain Gauge, Rate / Frequency, Totalizer, Quadrature
Clock / Timer
Digit Height	Case Width x Height	Case Width x Height
57 mm (2.2")	280 x 155 mm (11.0" x 6.1")	376 x 155 mm (14.8" x 6.1")
102 mm (4.0")	434 x 196 mm (16.7" x 7.7")	616 x 196 mm (24.3" x 7.7")
150 mm (5.9")	580 x 247 mm (22.8" x 9.8")	820 x 247 mm (32.3" x 9.8")
200 mm (7.9")	750 x 290 mm (29.5" x 11.4")	1072 x 290 mm (42.2" x 11.4")
Case depth	75 mm (3.0")

Number of Digits & Case Dimensions

Serial Data Input	4 Digits	6 Digits
Serial Data Input
Process, Strain Gauge, Rate / Frequency, Totalizer, Quadrature
Clock / Timer
Digit Height	Case Width x Height	Case Width x Height
57 mm (2.2")	280 x 155 mm (11.0" x 6.1")	376 x 155 mm (14.8" x 6.1")
102 mm (4.0")	434 x 196 mm (16.7" x 7.7")	616 x 196 mm (24.3" x 7.7")
150 mm (5.9")	580 x 247 mm (22.8" x 9.8")	820 x 247 mm (32.3" x 9.8")
200 mm (7.9")	750 x 290 mm (29.5" x 11.4")	1072 x 290 mm (42.2" x 11.4")
Case depth	75 mm (3.0")

Note:

Models with 57 mm (2.2") digits, 4 digits and 4 relays require the larger 6-digit case. For panel mount versions, add 18 mm (0.7") to case width and height for bezel and 25 mm (1.0") for cable gland in back of case.

MAGNA Large Digit Displays

MAGNA Process Signal (4-20 mA, 0-10V) Input Manual: 45 pages, 0.5 MB
MAGNA Clock-Timer Manual: 31 pages, 0.4 MB
MAGNA Strain Gauge & Load Cell Input Manual: 45 pages, 0.5 MB
MAGNA RS232 & RS485 Data Serial Data Input Manual: 36 pages, 0.4 MB
MAGNA Totalizer & Rate Meter Manual: 47 pages, 0.5 MB
MAGNA Thermocouple & RTD Input Manual: 45 pages, 0.5 MB
MAGNA Alarm Options Manual: 32 pages, 0.25 MB
MAGNA Analog Output Options Manual: 12 pages, 0.1 MB
MAGNA Serial Output Options Manual: 18 pages, 0.2 MB

More Information...

What is a Magna Series Large Digit Display 6 Inches (150 mm), 6 Digit Display?

The Magna Series Large Digit Display is a versatile and robust solution for applications that require clear, precise, and large numerical readings. With a 6-inch digit height and advanced features, this display is ideal for industrial environments, process monitoring, and public display systems. Below, we explore the key features and specifications of this powerful display system.

Key Features:

1. 6-Inch Digit Height

The 6-inch (150 mm) digit height makes the Magna Series display highly visible from a distance, ensuring that it can be easily read even in large spaces such as factories, warehouses, or outdoor areas. This makes it an excellent choice for both indoor and outdoor viewing applications where visibility is critical.

2. 6-Digit Display with Period or Color Dividers

The Magna Series includes 6 digits, which can display a wide range of numerical data, such as time, temperature, or production counts. Additionally, period or color dividers between digits enhance readability and allow for clear separation of numbers, further increasing the ease of interpretation.

3. Brightness Options: Normal or Outside Viewing

The display offers a choice of brightness levels to suit different environments. For indoor settings, normal brightness ensures comfortable viewing without glare. For outdoor use or areas exposed to direct sunlight, an outside viewing brightness option is available, ensuring that the digits remain clearly visible in all lighting conditions.

4. Multiple Signal Inputs and Functions

The Magna Series supports a variety of signal inputs and functions, allowing for seamless integration with different control systems. Users can choose the signal input that best suits their application, ensuring compatibility with existing equipment and control processes.

5. Flexible Mounting Options

The display offers multiple mounting options for versatile installation:

Panel Mount
Wall Mount
Suspension Mount

Whether you need to integrate the display into a control panel, mount it on a wall, or hang it from a ceiling, the Magna Series can be easily adapted to your installation requirements.

6. Power Supply Options: 95-264 Vac or 11-30 Vdc

The display comes with a choice of power supply options to fit different power environments. Whether you have standard AC power (95-264 Vac) or require DC power (11-30 Vdc), the Magna Series can accommodate your setup.

7. Sealed to NEMA-4 (IP65)

The display is sealed to NEMA-4 (IP65), making it resistant to dust and water ingress. This rugged construction ensures reliable operation in harsh environments, such as industrial settings where exposure to moisture or dust is common.

8. Slim Design: Only 3.0" (75 mm) Deep

Despite its large digit size, the display maintains a slim profile, with a depth of only 3.0 inches (75 mm). This compact design ensures that the display can be installed in tight spaces without compromising on visibility or functionality.

9. Programmable from the Front Panel

The Magna Series display can be easily programmed from the front panel, allowing users to quickly and conveniently adjust settings without needing additional tools or software. This user-friendly feature simplifies setup and maintenance.

10. Optional Outputs: Relay, Analog, Serial I/O

The display offers several optional output configurations for enhanced control and monitoring capabilities:

Two or four 2A relay outputs: Ideal for controlling external devices such as alarms or process equipment.
Analog output: Provides seamless integration with control systems that require analog signals.
Serial I/O: Enables communication with other devices or systems, such as PLCs or data loggers.

Conclusion

The Magna Series Large Digit Display is an ideal choice for environments that require highly visible, accurate, and customizable numerical displays. With its 6-inch digits, multiple mounting and power options, and rugged NEMA-4 (IP65) sealing, it is suitable for both indoor and outdoor applications. The programmable front panel and optional outputs further enhance its flexibility and integration potential, making it an invaluable tool for industrial, commercial, and public display systems.

Where is a Magna Series Large Digit Display 6 Inches (150 mm), 6 Digit Display used?

The Magna Series Large Digit Display (6 inches/150 mm, 6-digit version) is a specialized electronic display designed for industrial environments. Its primary function is to provide clear and easy-to-read numerical information in various manufacturing and operational settings. This type of display is most commonly used in areas where visibility, accuracy, and durability are critical. Below, we explore the most common industrial applications of these large digit displays and the specific features that make them essential.

Key Industrial Applications

1. Production Monitoring in Manufacturing Plants

In large manufacturing facilities, real-time monitoring of production metrics such as units produced, rate of production, and efficiency is crucial. The 6-inch Magna Series display is typically installed at strategic points within the factory floor to provide employees with vital information on:

Daily production targets
Actual production output
Downtime or stoppage times
Efficiency percentages

These displays allow both workers and supervisors to easily track progress without needing to be close to the display, improving productivity and reducing errors.

2. Assembly Lines and Processing Plants

In assembly lines or processing plants, timing and sequence are critical. Large digit displays are used to:

Indicate the number of products assembled or processed
Show cycle times and countdowns for operations
Provide immediate feedback on production anomalies, helping operators take corrective action

The 6-inch digit height ensures that the numbers can be read clearly from a distance, even in areas with poor lighting or significant physical obstructions.

3. Warehouses and Logistics Centers

In warehouses, inventory management and order fulfillment rely heavily on time-sensitive operations. Large digit displays are used to:

Show order numbers or pallet counts
Display stock levels for rapid inventory checks
Indicate the number of completed shipments or pending tasks

These displays ensure that personnel in expansive warehouse environments can quickly reference key numbers without needing to approach computer systems or handheld devices.

4. Environmental Monitoring in Industrial Facilities

In sensitive environments like chemical processing plants or energy facilities, real-time monitoring of environmental data is crucial. The Magna Series Large Digit Display is used to display:

Temperature, pressure, or humidity levels
Air quality or pollution metrics
Gas concentration levels for safety monitoring

These displays provide clear, real-time data that is critical for maintaining a safe and compliant working environment. The large digits ensure quick readability, especially in safety-critical situations.

5. Equipment Downtime Tracking

Tracking and minimizing equipment downtime is vital in industries like oil and gas, automotive manufacturing, and pharmaceuticals. The large digit display is commonly used to monitor:

Machine run times
Downtime tracking
Maintenance schedules

Operators can quickly identify how long equipment has been in operation or how much downtime has occurred, allowing for timely interventions to maximize uptime.

Conclusion

The Magna Series Large Digit Display (6 inches, 6 digits) is a versatile tool used in a wide range of industrial applications. From production monitoring to environmental safety, this display plays a vital role in providing clear, real-time data to operators and supervisors alike. Its high visibility, robust construction, and flexibility make it an essential component in improving efficiency, safety, and accuracy in industrial environments.

Less Information.

Magna Series Large Digit Display 6 inches (150 mm), 6 Digit Display
