Welcome to www.nodehelp.com
www.nodehelp.com is a website which contains the help pages associated with each data entry field of our Node-resident firmware. A Node (with a capital “N”) refers to our Ethernet Nodes. These run special firmware, which allows them to be discovered and configured using our PC-resident Node Manager Software, or online using our Node-resident firmware, which has its own IP address. Three types of Nodes are available, as described below.

The Nodes with attached devices can be accessed over a LAN or a WAN once they have been configured via our software or firmware. Supporting application software can be provided by our actory, such as Instrument Setup, Data

Data Display, and Data Logging software -- or it can be customer written.

Instruments from other manufacturers can be operated on an RS485 bus supported by our Ethernet-to-serial device server Nodes if the host computer uses the Modbus TCP protocol and commands suitable for these instruments. Our Nodes can also be set up in a tunneling mode without a protocol and simply pass through data packets without processing.

Our help pages are listed below. For additional technical support, please call us at 714-434-6131 and ask for Ethernet Tech Support.

Node Help Overview

Device Setup Pages:

Select Device

Change Device Name

Node Protocol

Baud Rate

Parity

Alarm Notification

Alarm Dwell Time

Alarm Mask: 1, 2, 3, 4

Data Email Interval

URL Refresh

Force Default

Node Help Overview

Email Setup Pages:

POP3 Mail Server

POP3 Username

POP3 Password

POP3 Port

POP3 Interval

SMTP Server

SMTP Email Address

SMTP Port

Add New Email

Delete Email

Test Email

Node Help Overview

Network Setup Pages:

Refresh Net

Static IP

Gateway IP

Subnet Mask

TCP Time-Out

Modbus TCP Port

HTTP Port

Discovery Port

Stealth Mode

Auto-Discovery

NTP Server

NTP Interval

Node Help Overview

Node Setup Pages:

Time Zone

Daylight Saving

GMT Offset

Change Node Name

Change LED States

Change Password

Confirm Password

Understanding Nodes and Devices

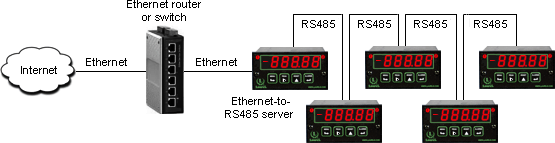

Our basic LNET Ethernet option board plugs into a host 1/8 DIN digital panel meter, counter or timerand provides to provide a 10/100BaseT Ethernet interface. This Node supports only one device, namely the host meter, which can be ordered with a choice of displays, signal conditioner boards, relay output boards, and analog output boards.

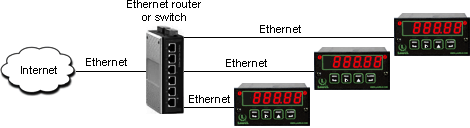

Our LNET485 Ethernet-to-serial device server option board also plugs into a host meter. This Node provides an RJ45 connector for a 10/100BaseT Ethernet interface, plus an RJ11 connector to serve as a device server for up to 31 meters on an RS485 bus. RS485 wiring is via commercial straight-through 6-wire data cables. The host meter can be ordered with a choice of displays, signal conditioner boards, relay output boards, and analog output boards.

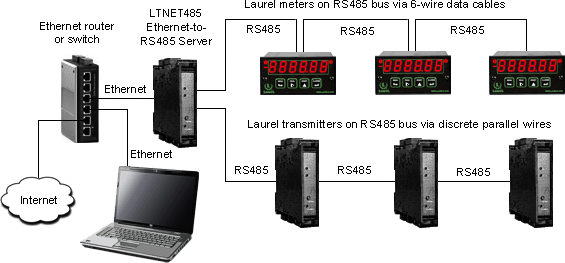

Our LTNET485 DIN-rail Ethernet-to-serial device server provides an electrically isolated 10/100BaseT Ethernet interface via an RJ45 Ethernet connector, plus an RJ11 connector and screw terminals to serve as a device server for up to 31 meters and transmitters on an RS485 bus. The RJ11 connector and screw terminal are wired in parallel. This DIN-rail mounted Node is the preferred Ethernet gateway for a bank of transmitters with screw terminal connectors.
