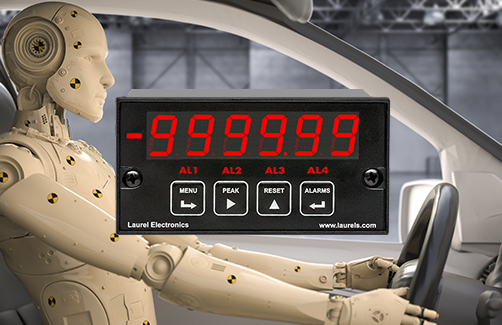

Digital Panel Meter for 6 Digit Digital Stopwatch and Timer Applications

6-Digit Stopwatch & Timer Digital Panel Meter Frequently Asked Questions

Why does the output/display update formula here ("0 ms + programmable 10 ms to 199.99 s") differ from the "gate time + 30 ms + 0-2 signal periods" formula documented on other Laureate counter modes?

Stopwatch timing measures a genuinely different kind of event than frequency or rate measurement — it's timing the interval between two specific edges rather than averaging repetitive signal periods over a gate window, so there's no equivalent "0-2 signal periods" uncertainty to add; the simpler 0 ms baseline plus programmable delay reflects that a stopwatch reading is available as soon as the stop edge is detected, without needing to wait out additional signal cycles.

Does tying Channel A and B together to measure pulse width give the same result as using A-B mode with two separate input sources?

No — these are documented as functionally distinct: the tied A-B configuration measures the width of a single waveshape (from its own rising edge to its own falling edge, or vice versa), while true A-B mode with separate sources times the interval between two genuinely independent signals; tying the channels together is specifically a technique for single-signal pulse-width measurement, not a substitute for dual-source interval timing.

Why does the HH.MM.SS clock format offer only 1-second resolution while the decimal format can resolve to 0.2 µs?

The HH.MM.SS format is documented specifically as a clock-style display convention built around whole seconds, minutes, and hours — its digit structure inherently doesn't have room to represent sub-second fractions, whereas the decimal H, M, or S format uses all six display digits purely for magnitude in a single unit, which is what allows it to represent the meter's full underlying 0.2 µs timing resolution when the measured interval is short enough.

In "Rate Based on 1/Time" mode, why does the display hold its value until reset by an external control input rather than updating continuously?

Documented behavior specifically describes the display holding the calculated speed reading until an external reset — since this mode is built around discrete timing events (such as an object breaking two light beams once), there's no new continuous stream of updates to display between events; holding the last calculated value is what lets an operator or downstream system read that specific event's result before the next measurement cycle begins.

Does the "Timing Process Dynamics" application require the dual relay board to be installed on the same meter doing the timing, or can it be on a separate instrument?

Documented description specifically shows the start and stop pulses being generated by the dual relay board in a separate Laureate analog panel meter or digital counter — meaning the relay-generating instrument and the timing instrument are documented as two separate meters working together, with the relay board's contact closures feeding into the timer's Channel A and B inputs, rather than requiring both functions on a single unit.

Can the "Instrumenting a Pulsed Laser System" application capture all of the listed parameters (elapsed time, pulse count, width, separation, duty cycle, rep rate) from a single meter simultaneously?

Documented framing specifically presents this as "some of the many possibilities" available across dual-channel Laureate counters generally, rather than claiming a single meter instance captures every listed parameter at once — since Item #1 and Item #2 track only two values simultaneously (event time and accumulated time, in stopwatch mode), a full multi-parameter laser instrumentation setup would typically involve multiple meters or multiple operating modes rather than one meter capturing the entire list concurrently.

Does replacing an oscilloscope with this meter mean giving up the ability to see the actual waveform shape?

Yes, inherently — documented positioning specifically frames this meter as the better choice for fixed installations needing digital timing accuracy and control outputs, not as a full oscilloscope replacement for waveform visualization; an oscilloscope remains the better tool specifically for viewing signal shape in a lab setting, while this meter is positioned for permanent, numeric, control-integrated timing applications.

Does selecting a longer gate time in stopwatch mode change the fundamental 0.2 µs timing resolution of an individual measured interval?

No — gate time in this context specifically governs how often the display updates during a stopwatch measurement cycle, not the underlying resolution with which any single start-to-stop interval is timed; the documented 0.2 µs figure is the meter's fundamental timing resolution for the interval itself, independent of the display's own update rate.

Does the meter's ±2 ppm crystal time base accuracy meaningfully affect a typical stopwatch measurement, or does it only matter for very long timing intervals?

It scales with the measured interval — a ±2 ppm error represents an absolute time error of only about 2 microseconds per second timed, which is negligible for short single-event measurements but becomes proportionally more significant as accumulated time (Item #2) or a single very long timing interval grows toward the meter's documented 999,999-hour maximum range, where even a small ppm-level error compounds into a larger absolute time discrepancy.

Can Item #1 (event time) and Item #2 (accumulated time) be reset independently of each other, or does resetting one always reset both?

Documented behavior describes these as separately tracked values — Item #1 resets to zero automatically when the next start pulse occurs, marking the beginning of a new single-event timing cycle, while Item #2 continues accumulating total time across multiple such events; this distinction is what allows the meter to report both "how long did this specific event take" and "how much total time has elapsed across all events" without one measurement disrupting the other.

Photogate & Break-Beam Speed Measurement Questions From the Field

Why does a photogate's documented electronic timing resolution (often 1 microsecond) not translate directly into that same level of real-world measurement precision?

Documented technical guidance specifically distinguishes electronic timing resolution from actual measurement variation — even with 1 microsecond electronic resolution, documented real-world testing shows measurements can still vary by as much as ±25 milliseconds, attributed specifically to variations in the optical-response tolerances of the photodiode itself and the geometry of the object relative to its path through the gate.

Does a photodiode respond identically fast when transitioning from unblocked-to-blocked as it does from blocked-to-unblocked?

No — documented analysis specifically identifies a genuine, measurable asymmetry between these two transition directions due to differences in the photodiode's own optical response characteristics; timing modes that combine both blocked and unblocked transitions in a single measurement are documented as producing significantly higher error than modes using only one consistent transition type (blocked-to-blocked or unblocked-to-unblocked).

In a two-gate speed measurement setup, what specific role does the length of the object's blocking flag play in the calculation?

Documented methodology specifically calculates velocity by dividing the known length of the object's blocking element (its "flag" or shutter) by the time that gate was blocked — this makes flag length a directly load-bearing input to the calculation, meaning an inaccurately measured flag length translates proportionally into a speed calculation error, independent of how precise the underlying timing itself is.

Does a shorter blocking flag genuinely improve the accuracy of a speed measurement, or is it just a convention?

Documented physics-lab guidance specifically frames this as a genuine, deliberate tradeoff — a smaller flag length makes the resulting speed measurement more "instantaneous," better approximating the object's true instantaneous velocity at that point rather than an average velocity smeared across the flag's full physical length as it crosses the beam.

Can multiple wirelessly connected photogates introduce timing error beyond the individual gates' own response characteristics?

Yes — documented testing specifically found that using multiple wirelessly connected photogates together introduces additional measurement variation compared to using gates connected via a shared cable, attributed specifically to the initialization timing differences between each device's independent internal clock when data collection starts; gates sharing a single physical timing connection are documented as not experiencing this added error.

Does parallax or off-center passage through a light-beam gate introduce a documented, quantifiable error?

Yes — documented specifications for a light-gate timer specifically quantify this: for an object passing through the gate within about 1 cm of the detector at a velocity under roughly 10 m/s, the documented difference between the object's true length and its effective (as-measured) length is quantified as less than 1 millimeter — a real, bounded, but non-zero source of error tied specifically to where within the gate's width the object passes.

Is it standard practice to independently calibrate a light-gate timer's own electronics before trusting its speed or timing readings?

Documented guidance on at least one common light-gate system specifically states the device does not require calibration, since it's a direct electronic timing measurement rather than an analog sensor needing a reference curve — but documented best practice for verifying overall system response time separately still recommends timing a known, well-characterized event (such as an object of known speed) and comparing the measured result against the expected value to characterize the system's actual response time.

Does light-gate based timing require the light source and detector to be perfectly aligned, or is some misalignment tolerable?

Documented best-practice guidance specifically identifies careful alignment of the light source and detector as an important step in setting up an accurate light-gate measurement, specifically to ensure a clear and consistent beam and to minimize the risk of the beam being only partially blocked during a measurement — while some tolerance likely exists, documented guidance treats careful alignment as a standard, necessary setup step rather than an optional refinement.
