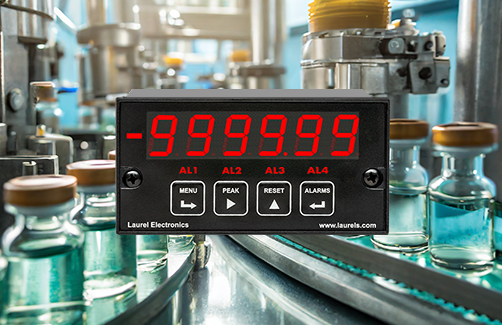

Panel Meter for Batch Controller Analog Input Applications

Analog Input Batch Controller — Additional Technical Questions

What's actually different about using a V-to-F analog signal conditioner instead of the FR pulse signal conditioner for batch control?

The FR board reads pulses directly from a turbine flow meter or similar pulse-output sensor. The VF board instead accepts a conditioned analog process signal (4-20 mA, 0-1 mA, or 0-10V) — typically from a transmitter that has already converted its raw sensor signal into a standard analog process signal — and internally converts that to a frequency (10-110 kHz) before applying the same inverse-period measurement technique used elsewhere in the Laureate line.

Which of the three analog input types (4-20 mA, 0-1 mA, 0-10V) should I choose for my batch controller?

The choice depends entirely on what output type your flow transmitter or transducer actually provides — the VF board is jumper-selectable between the three, so it should be matched to the transmitter's rated output type rather than chosen independently. 4-20 mA is the most common choice for long cable runs due to its inherent noise immunity.

Does the analog-input version need excitation power for the connected transmitter, or does that come separately?

The meter provides a built-in isolated excitation output (5, 10, 12, or 24 Vdc, jumper-selectable) that can power a connected transducer or two-wire transmitter directly, eliminating the need for a separate power supply for the field device.

How does the update rate on the analog input version compare to the pulse input version?

The analog input's maximum update rate is 50 ms, versus the pulse-input FR board's update rate that can reach 25 readings per second (roughly 40 ms) at its fastest gate time — the two are broadly comparable, but the analog version's update rate is fixed at that 50 ms maximum regardless of the actual analog signal's characteristics, since it's governed by the V-to-F conversion and inverse-period measurement stages together.

Can a single batch controller be reconfigured between pulse input and analog input later, or is that a hardware decision made at order time?

This is a hardware decision — the FR and VF are two different physical signal conditioner boards, so switching between pulse-input and analog-input operation requires physically swapping the signal conditioner board, not just a software or firmware change.

What relay hysteresis modes are available to prevent the batch relay from chattering right at the target?

QA passband mode, split hysteresis, and span hysteresis are all available on the relay output boards, controlling how far the reading has to move away from a setpoint before the relay changes state again — the same relay hardware and hysteresis options apply whether the controller is configured for pulse or analog input.

Is the analog input batch controller's accuracy tied to the meter's own specs, or to the connected transmitter?

Both, in combination — the meter's own signal conditioning and inverse-period measurement contribute their own accuracy, but the overall batching accuracy is fundamentally limited by the accuracy and calibration of whatever transmitter is generating the 4-20 mA, 0-1 mA, or 0-10V signal in the first place. A highly accurate meter can't compensate for an inaccurate or poorly calibrated field transmitter.

Can the analog input batch controller totalize a flow signal that's already been square-root extracted by the transmitter?

Yes, as long as the transmitter's output signal is already linearized to flow (rather than raw differential pressure), the meter can totalize it directly. It's important to confirm whether square root extraction is being applied once, either in the transmitter or in the meter, but not both, since applying it twice would distort the resulting flow calculation.

What happens to the batch total and grand total if power is lost mid-fill on the analog input version?

Totals are stored in non-volatile memory and retained through a power interruption, the same as on the pulse-input version, though the specific recovery behavior for a batch actively in progress at the moment of power loss should be confirmed against the meter's configuration for that application.

Can the analog batch controller also serve as an isolated 4-20 mA transmitter for another system, in addition to controlling the batch?

Yes, with the optional isolated analog output board, the meter can retransmit rate or total as an isolated 4-20 mA or 0-10V signal, letting a separate PLC or recorder independently monitor the process value while the meter's own relay logic handles batch control.

Analog Input Batch Controller Questions From Online Engineering Sources

Should I use a pulse output or a 4-20 mA output flow meter for controlling batch flow rate with a valve or VFD?

Real field discussion on this generally favors 4-20 mA specifically for closed-loop rate control — a 4-20 mA signal integrates directly into a PID control loop for driving a valve or variable-speed pump, whereas pulse output is more commonly reserved for totalizing when a HART or 4-20 mA option isn't available. Some practitioners specifically note trusting a totalizer pulse input over an analog signal for absolute accuracy, using the pulse count as a cross-check against the 4-20 mA reading rather than relying on either exclusively.

What is turndown ratio, and why does it matter for a flow transmitter feeding a batch controller?

Turndown ratio is the range between a transmitter's maximum and minimum flow rate that it can still measure accurately, and it directly determines whether a transmitter can handle both a batch's low-flow dribble stage and its high-flow bulk-fill stage without losing accuracy at one end. A transmitter with insufficient turndown for the batch's actual flow range can produce accuracy errors that scale dramatically at the low end — documented examples show low-end accuracy degrading to tens of percent error when a transmitter is pushed well below its rated turndown minimum.

Why would a differential-pressure-based flow transmitter be a poor choice for a batch process with a wide dribble-to-bulk flow range?

DP-based flow measurement (such as an orifice plate) has documented turndown ratios as low as roughly 3:1, since flow is proportional to the square root of differential pressure, meaning accuracy degrades sharply at low flow. For a batch process needing to measure reliably across a wide range — from a slow dribble stage up to full bulk-fill flow — a technology with much higher turndown (such as magnetic or turbine flow measurement) is generally the better-documented choice.

What is "double extraction," and how could it silently corrupt my batch total?

This is a specifically documented configuration error: if a differential-pressure transmitter is configured to apply square root extraction internally, and the receiving device (such as this batch controller) also applies square root extraction to the same signal, the result looks approximately correct near the middle of the range but deviates dramatically at low and high flow. Verifying that square root extraction is applied in exactly one place in the signal chain — either the transmitter or the receiving meter, never both — is essential to catching this before it corrupts batch totals.

Does a flow transmitter's accuracy stay the same over time, or does it need periodic reverification for batch service?

Documented transmitter performance data shows a freshly calibrated transmitter meets its rated accuracy on day one, but stability drift (typically referenced to the transmitter's upper range limit rather than the actual span in use) accumulates over roughly a 12-month period, adding a meaningful error component. This drift contribution becomes proportionally larger the higher the turndown ratio being used, which is a documented reason to plan periodic recalibration intervals specifically for high-turndown transmitters used in precision batching.

Can I safely extend a transmitter's configured range beyond its rated turndown just by reconfiguring the LRV/URV in a smart transmitter?

No — this is a specifically documented pitfall: modern smart transmitters technically allow entering nearly any lower and upper range values, but doing so doesn't guarantee accurate measurement if the resulting turndown exceeds the transmitter's actual rated capability. Exceeding the manufacturer's rated turndown ratio voids the transmitter's accuracy specification, even though the device will still output a signal.

Why does my flow rate fluctuate rapidly and erratically when two pumps run simultaneously, feeding the same transmitter?

This has been documented as a real field issue, and while root causes can vary by installation, it's frequently linked to turbulence or pressure interaction at the transmitter's sensing point when multiple pumps operate together, rather than a fault in the transmitter or receiving meter itself. Reviewing transmitter placement relative to pump interaction points and confirming adequate straight-pipe run upstream of the sensor are standard troubleshooting steps for this specific multi-pump interference pattern.

How much cable length can a 4-20 mA signal reliably run before I should switch to a digital signal for a remote batch controller installation?

Industry guidance generally recommends keeping 4-20 mA current loop runs within roughly 100 meters for reliable performance, with longer distances better served by a digital communication protocol (such as RS-485) instead — current loop signals resist voltage-drop-related error far better than voltage-based signals, but very long runs still introduce practical limitations worth planning around for a remote batching installation.
