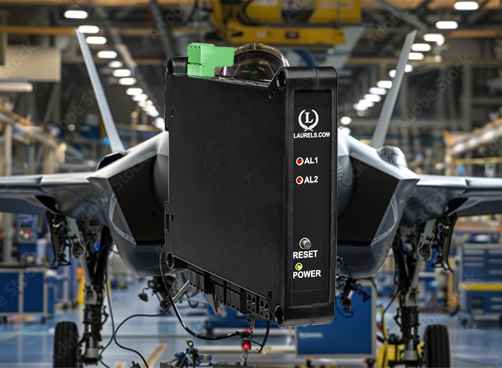

LTE DIN Rail Analog Transmitter with Ethernet Communication and Analog outputs for Resistance in Ohms

LTE Resistance in Ohms Transmitter Frequently Asked Questions

Why does each resistance range use a different excitation current?

Excitation current is scaled inversely to the range so the resulting voltage signal stays in a measurable range without exceeding safe power dissipation in the resistance being measured — a low range like 2Ω uses a relatively high 5 mA excitation, while the 20 MΩ range uses just 80 nA to avoid excessive voltage across a very high resistance.

What's the difference between the jumper-selectable ranges and the factory-special fixed ranges?

The five middle ranges (20Ω through 200 kΩ) are jumper-selectable on the same board, so switching between them is a configuration change. The three extreme ranges (2Ω, 2 MΩ, 20 MΩ) are factory-set fixed ranges, meaning a specific unit is built and calibrated for one of those ranges rather than being switchable among them in the field.

Does the Ethernet interface affect measurement accuracy or update rate?

No — accuracy and update rate come from the same signal conditioning used across the resistance product line; Ethernet only changes how the reading is transmitted digitally rather than over serial data.

Why is 0.1 milliohm resolution on the 2Ω range specifically useful?

Contact resistance measurements — checking connector, switch, or weld joint quality — often deal with resistances in the tens or hundreds of milliohms, where small changes matter. The fine 0.1 mΩ resolution on this range makes it possible to detect meaningful degradation or defects that would be invisible on a coarser scale.

How does QA passband mode differ from a standard high/low alarm setpoint?

A standard setpoint triggers when a reading crosses a single threshold in one direction. Passband mode instead defines a band around a target value and triggers based on whether the reading falls inside or outside that band on either side, which is the natural fit for pass/fail component testing where both too-high and too-low resistance indicate a defect.

Can this transmitter measure insulation resistance in the megohm range?

Yes — the two highest ranges (2 MΩ and 20 MΩ) are specifically suited to insulation resistance measurement on equipment like motor windings and transformers, where healthy insulation reads very high resistance and degradation shows up as a falling reading over time.

When should I use a 3-wire connection instead of 4-wire?

4-wire gives the most complete lead resistance cancellation since excitation and sensing use entirely separate leads. 3-wire is a reasonable middle ground when a 4th wire isn't practical, canceling lead resistance mathematically provided both excitation leads have matched resistance and temperature behavior.

Does the transmitter's ratiometric operation affect how excitation current variation impacts the reading?

No in a good way — ratiometric operation means the transmitter senses the actual applied excitation current and compensates automatically for variations in it, so small changes in the excitation source don't translate into resistance measurement errors.

Does this transmitter include an excitation output for other sensor types, like the DC or load cell versions?

The resistance signal conditioner applies its own fixed, range-specific excitation current for the resistance measurement itself, which is a purpose-built current source rather than the general-purpose selectable excitation output available on non-temperature, non-AC-RMS LTE models.

Can multiple resistance transmitters be networked together?

Yes — the transmitter supports up to 247 digital addresses via Modbus TCP, allowing many individually addressable transmitters to coexist on the same Ethernet network.

LTE Resistance in Ohms Transmitter Questions From the Field

My contact resistance readings are inconsistent from part to part even though they should be identical — what should I check?

Inconsistent contact readings often trace to probe contact quality (pressure, cleanliness, or oxidation at the test point) rather than a transmitter fault, since contact resistance measurements are especially sensitive to the quality of the probe-to-part connection itself; checking probe condition and contact force is the standard first step.

My insulation resistance reading is dropping gradually over time on equipment that seems to be running fine — what does that mean?

A gradual downward trend in insulation resistance is a well-documented early indicator of insulation degradation in motors and transformers, often preceding an actual fault by a significant margin; tracking the trend over time (rather than a single reading) is the standard practice for catching this kind of gradual failure.

My transmitter isn't showing up on the network — what should I check first?

Confirming the transmitter's IP configuration matches what the network expects, and that the physical Ethernet cable and switch port are functioning, are the standard first checks before suspecting a transmitter fault.

Why would my reading on the 2Ω range be noisy or unstable compared to a higher range?

Low-resistance ranges are more susceptible to the effects of any uncompensated lead or contact resistance, since these are a larger fraction of the total reading at low ohm values; verifying the wiring configuration (2/3/4-wire) matches what's expected for the accuracy needed is the standard first check.

My QA passband relay is rejecting parts that measure within spec on a handheld meter — what should I check?

Confirming that the deviation band and target setpoint are configured to match the actual acceptable tolerance for the part, rather than a default or previously used value, is the first step, since a passband mode set too tight or centered incorrectly will reject otherwise good parts.

Can two transmitters set to the same nominal range read slightly differently for the same resistance?

Small unit-to-unit differences can occur since each unit's factory calibration is specific to its own signal conditioner board; if the difference exceeds the specified 0.01% of reading ± 2 counts tolerance, verifying both units against a known precision resistance standard is the recommended step.

Why does switching from 2-wire to 4-wire change my calibration results on the same part?

Moving to 4-wire sensing removes lead resistance from the measurement entirely, while 2-wire includes a fixed lead resistance offset captured at setup; a calibration performed under one wiring configuration doesn't carry over correctly after changing wiring, so recalibrating after any wiring change is recommended.

My Modbus TCP polling occasionally times out even though the transmitter appears connected — what's the likely cause?

Network congestion or too many devices polling the same transmitter simultaneously can cause intermittent timeouts; checking polling frequency from all connected clients and network traffic load is a common troubleshooting step.
