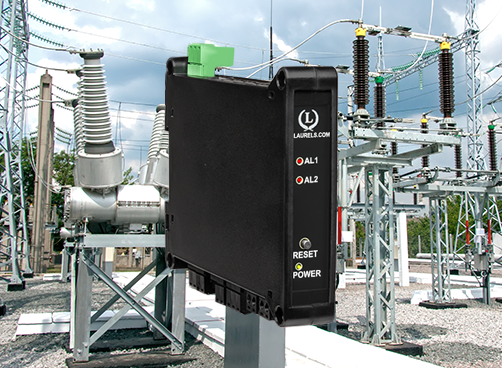

LTE DIN Rail Digital Transmitter with Ethernet Communication and Analog Outputs for AC Phase Angle and Power Factor Applications

LTE AC Phase Angle and Power Factor Transmitter Frequently Asked Questions

Why does phase angle accuracy get worse at higher frequencies (1° at 10 kHz vs. 0.01° up to 100 Hz)?

Phase angle is derived from timing the offset between zero crossings using a fixed clock resolution; at higher signal frequencies, each cycle takes less absolute time, so the same clock resolution represents a larger angular uncertainty relative to the shorter period — this is a timing-resolution tradeoff inherent to the measurement method, not a limitation specific to this transmitter.

Why does the transmitter report power factor as 0 for phase angles greater than 90°?

Power factor is defined as the cosine of phase angle, and cosine becomes negative for angles beyond 90°; since power factor is conventionally treated as a positive quantity that doesn't extend meaningfully past that point in typical AC power applications, the transmitter reports 0 rather than a negative cosine value in that range.

What does the negative sign on a power factor reading actually indicate?

It's a documented convention indicating the underlying phase angle is negative (current leading rather than lagging voltage, or vice versa depending on wiring convention), not a claim that power factor itself is a negative quantity — power factor is fundamentally a magnitude between 0 and 1.

Does the Ethernet interface affect measurement accuracy or update rate?

No — accuracy and update rate come from the same quartz-referenced signal conditioning used across the phase angle product line; Ethernet only changes how the reading is transmitted digitally rather than over serial data.

Can this transmitter measure phase angle between two signals of different frequencies?

No — phase angle is only meaningful and measurable between two periodic signals of the same period; if the two input signals have different frequencies, the phase relationship between them isn't fixed and phase angle in the traditional sense doesn't apply.

Why does a longer gate time improve accuracy for phase angle and power factor measurement?

A longer gate time allows the transmitter to average across multiple signal cycles rather than basing the reading on a single cycle, which reduces the relative impact of any single-cycle noise or timing jitter on the final reported value, at the cost of a slower update rate.

Does this transmitter measure real power (watts) directly?

No — it measures phase angle and derives power factor from it; actual real power in watts also depends on the RMS voltage and current magnitudes, which this transmitter doesn't measure itself (as shown in the generator synchronization example, separate AC RMS voltmeters are used alongside this transmitter for that purpose).

What signal types does this transmitter accept for phase angle and power factor measurement?

It accepts sinusoidal AC and square wave signals from 10 mV to 250 Vac, across a frequency range of 0.005 Hz to 10 kHz, applied to its two input channels.

Do I need a gateway device to connect this transmitter to my network?

No — the transmitter connects directly to a LAN via its own RJ45 jack over Modbus TCP, without requiring a separate RS485-to-Ethernet gateway.

Can multiple phase angle/power factor transmitters be networked together?

Yes — the transmitter supports up to 247 digital addresses via Modbus TCP, or a high-speed Ethernet or WiFi communication board can be used for network connectivity.

LTE AC Phase Angle and Power Factor Transmitter Questions From the Field

My phase angle reading seems to jump around even though the load appears stable — what should I check?

Instability in the phase angle reading is often linked to a gate time that's too short relative to the noise level on the input signals; increasing the gate time to average across more cycles is the standard first step before suspecting a wiring or load issue.

My power factor reading shows 0 even though I expect a small nonzero value — why?

If the actual phase angle between the two signals exceeds 90°, the transmitter is documented to report power factor as 0 rather than a negative cosine value; verifying the actual phase angle reading (not just the power factor) is the way to confirm whether this is expected behavior or a genuine problem with the load.

My two generators won't synchronize even though the phase transmitter shows a small angle — what else should I check?

Successful synchronization requires matching frequency, phase angle close to zero, and close voltage magnitudes together — a small phase angle alone doesn't guarantee synchronization if the frequencies aren't also closely matched or the line voltages differ significantly; checking all three parameters together (as the documented three-instrument setup does) is the standard approach.

My transmitter isn't showing up on the network — what should I check first?

Confirming the transmitter's IP configuration matches what the network expects, and that the physical Ethernet cable and switch port are functioning, are the standard first checks before suspecting a transmitter fault.

Can electrical noise on one channel throw off my phase angle reading even if the other channel looks clean?

Yes — since phase angle depends on precisely timing zero crossings on both channels, noise affecting the zero-crossing timing on either single channel can distort the calculated angle; checking cable shielding, grounding, and signal quality independently on each channel helps isolate which one is actually the source of an unstable reading.

My power factor reading looks accurate at power line frequency but degrades at higher test frequencies — is that expected?

Yes — this follows directly from the documented frequency-dependent accuracy of the underlying phase angle measurement, since power factor is derived from phase angle; the specification explicitly notes accuracy is tightest near 50/60 Hz and looser at higher frequencies like 1 kHz or 10 kHz.

My Modbus TCP polling occasionally times out even though the transmitter appears connected — what's the likely cause?

Network congestion or too many devices polling the same transmitter simultaneously can cause intermittent timeouts; checking polling frequency from all connected clients and network traffic load is a common troubleshooting step.

My reading updates too slowly for the fast response I need — what should I check?

Reducing the configured gate time toward its minimum (10 ms) increases update rate at some cost to averaging-based accuracy; balancing gate time against how much update speed the application genuinely requires is the standard tradeoff to review.
