Ethernet & 4-20 mA Output Transmitter for Time of Single or Accumulated Events

Resolution to 0.2 µs. Duration to 999,999 hrs. DIN Rail mounted, digitally programmable.

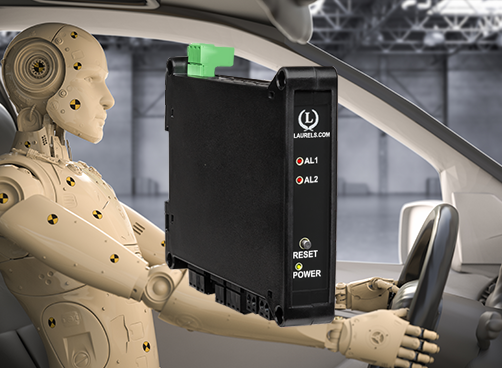

Ethernet transmitter

Features

  • Ethernet Serial Data I/O, Modbus TCP or Laurel ASCII protocol
  • 4-20 mA, 0-20 mA or 0-10V transmitter output, 16 bits, jumper selectable, isolated
  • Dual 120 mA solid state relays for alarm or control, isolated
  • 5V, 10V or 24V dc transducer excitation output, isolated
  • Transmits single event time or accumulated time of all events
  • Timing from 0.2 µs to 999,999 hrs
  • Inputs from NPN or PNP proximity switches, contact closures, digital logic,
    or magnetic pickups down to 12 mV.
  • Analog output resolution 0.0015% of span (16 bits), accuracy ±0.02% of span
  • Universal 85-264 Vac / 90-300 Vdc or 10-48 Vdc / 12-32 Vac power
Description
accumulated time

The Laureate stopwatch transmitter puts out isolated analog and serial data output signals whose values track the time of single events which produce start and stop pulses, or the accu­mulated time of multiple events. It can also time the width of a single pulse. The highest resolution is 0.2 µs, making the transmitter ideal for fast events. The longest timing interval is 999,999 hrs. For long events, the analog output is updated continuously during timing. There are two primary timing modes:

  • A-A Stopwatch Mode. Time is measured between a start pulse and a stop pulse, both on Channel A, from either the positive or negative edges.
  • A-B Stopwatch Mode. Time is measured between a start pulse on Channel A (positive or negative edge) and a stop pulse on Channel B (positive or negative edge). This mode allows inputs from different sources. In addition, the A and B inputs can be tied together to start the stopwatch with one polarity and stop it with the other polarity.

Event time (Item #1) is measured by counting 5.5 MHz clock pulses from a calibrated quartz crystal. The stopwatch output is updated during timing at a rate controlled by a gate time, up to 25/sec. Time is reset to zero when the next start pulse occurs. Accumulated time from multiple events up to 999,999 hours (Item #2) is also tracked.

Signal Conditioner Board for Laureate Digital Time Interval Transmitter and Digital Timer

The dual-channel signal conditioner used for pulse detection accepts inputs from proximity switches with PNP or NPN output, TTL or CMOS logic, magnetic pickups, contact closures, and other signals from 12 mV to 250 Vac. Jumper selections provide optimum operation for different sensor types and noise conditions. A built-in 5V, 10V or 24V dc excitation supply can power proximity switches and other sensors, and eliminate the need for an external power supply.

Standard features of the LTSE include:

  • Ethernet I/O, isolated. Supported protocols are Modbus RTU and ASCII (tunneled via Modbus TCP) and Laurel ASCII. The latter is simpler than the Modbus protocol and is recommended when all devices are Laureates. Note that RS232 or RS485 data I/O in lieu of Ethernet is provided by LT Series transmitters
  • 4-20 mA, 0-20 mA or 0-10V analog transmitter output, isolated, jumper-selectable and user scalable. All selections provide 16-bit (0.0015%) resolution of output span and 0.02% output accuracy of a reading from -99,999 to +99,999 counts that is also transmitted digitally. Output isolation from signal and power grounds eliminates potential ground loop problems. The supply can drive 20 mA into a 500 ohm (or lower) load for 10V compliance, or 10V into a 5K ohm (or higher) load for 2 mA compliance.
  • Dual solid state relays, isolated. Available for local alarm or control. Rated 120 mA at 130 Vac or 180 Vdc.
  • Universal 85-264 Vac power. Low-voltage 10-48 Vdc or 12-32 Vac power is optional.

Discovery and configuration of Laureate Ethernet Nodes is easily achieved with Laurel's Node Manager Software, and the discovered transmitters can then be programmed using Laurel's Instrument Setup Software. Both softwares run on a PC under MS Windows and can be downloaded from this website at no charge.

Laureate Ethernet network by Laurel Electronics
Specifications
Pulse Input
Types AC, pulses from NPN, PNP transistors, contact closures, magnetic pickups.
Signal Ground Common ground for channels A & B.
Minimum Signal Nine ranges from (-12 to +12 mV) to (+1.25 to +2.1V).
Maximum Signal 250 Vac
Maximum Frequency 1 MHz, 30 kHz, 250 Hz (selectable).
Contact Debounce 0, 3, 50 ms (selectable).
Time Base Accuracy Quartz crystal calibrated to ±2 ppm.
Span Tempco ±1 ppm/°C (typ)
Long-term Drift ±5 ppm/year
Stopwatch Operation
Timing Modes:
  With CH A only + to + edge, or - to - edge.
  With CH A tied to CH B + to - edge, or - to + edge.
  With CH A and CH B + edge of A to + edge of B, + edge of A to - edge of B, - edge to A to - edge of B, - edge of A to - edge of B
Timing Interval 1 µs to 999,999 hrs
Timing Resolution 0.2 µs to 1 hr
Selectable Decimal Time 999999 H, M or S format with decimal point
Selectable Clock Time HH.MM.SS format
Output Update Rate Programmable gate time from 10 ms to 199.99 s + 30 ms
Analog Output (standard)
Output Levels 4-20 mA and 0-10 Vdc (selectable)
Compliance, 4-20 mA 10V (0-500 ohm load)
Compliance, 0-10V 2 mA (5 kOhm load)
Output Resolution 16 bits (65,536 steps)
Output Accuracy ±0.02% of output span
Output Update Rate Programmed gate time + 30 ms + 0-2 signal periods
Output Isolation 250V rms working, 2.3 kV rms per 1 minute test
Ethernet Data I/O (standard)
Type 10/100 Base-T Ethernet per IEEE 802.3
Data Rates 300, 600, 1200, 2400, 4800, 9600, 19200 baud
Output Isolation 250V rms working, 2.3 kV rms per 1 min test
Serial Protocols Modbus TCP, Modbus RTU, Modbus ASCII, Laurel ASCII
Modbus Compliance Modbus over Serial Line Specification V1.0 (2002)
Digital Addresses 247 for Modbus, 31 for Laurel ASCII
Dual Relay Output (standard)
Relay Type Two solid state relays, SPST, normally open, Form A
Load Rating 120 mA at 140 Vac or 180 Vdc
Sensor Excitation Output (standard)
Output Levels 5V@100 mA, 10V@120 mA, 24V@50 mA (jumper selectable)
Output Isolation 50V from signal ground
Power Input
Standard Power 85-264 Vac or 90-300 Vdc
Low Power Option 10-48 Vdc or 12-32 Vac
Power Frequency DC or 47-63 Hz
Power Isolation 250V rms working, 2.3 kV rms per 1 min test
Power Consumption 2W typical, 3W with max excitation output
Mechanical
Dimensions 129 x 104 x 22.5 mm case
Mounting 35 mm rail per DIN EN 50022
Electrical Connections Plug-in screw-clamp connectors
Environmental
Operating Temperature 0°C to 55°C
Storage Temperature -40°C to 85°C
Relative Humidity 95% at 40°C, non-condensing
Cooling Required Mount transmitters with ventilation holes at top and bottom. Leave 6 mm (1/4") between transmitters, or force air with a fan.
Pinout
Laureate Ethernet & 4-20 mA Transmitter for Time of Single or Accumulated Events
LTE Ethernet Transmitter Pinout
Applications Examples
Stopwatch Mode
Stopwatch mode of Laureate digital stopwatch transmitter The stopwatch mode is used to time single events between start and stop pulses on the same channel. Duration of a single wave shape can be measured by tying the A and B channels together.
Timing Process Dynamics
Timing process dynamics by Laureate digital stopwatch transmitter The start and stop pulses used for timing can be generated by the dual relays in a Laureate panel meter, counter, or transmitter. For instance, the start and stop pulse edges can be created as temperature passes two alarm setpoints, or as temperature cycles in a hysteresis control mode.
Replacing an Oscilloscope with a Laureate Meter or Transmitter
Replacing an oscilloscope by a Laureate digital stopwatch transmitter An oscilloscope is great for viewing and timing pulses in a lab. However, in fixed installations where digital timing accuracy and control outputs are required, a low-cost Laureate time interval meter or transmitter will be the instrument of choice. Resolution to 0.2 µs is feasible.
Instrumenting a Pulsed Laser System
Instrumenting a laser system using Laureate timers and stopwatches
Some of the many possibilities in instrumenting a pulsed laser system with Laureate dual-channel counters and transmitters: elapsed time, number of pulses, pulse width, pulse separation, duty cycle, and pulse rep rate.
Ordering Guide
Laureate™ Ethernet & 4-20 mA Transmitter for Time of Single or Accumulated Events
Click on the radio buttons to build a model number with pricing as shown below. Prices are in US dollars and do not include shipping or duty charges (export sales). Please see our explanations and limitations applicable to pricing and online orders. Prices shown are in US Dollars and are Laurel's manufacturer's suggested retail price (MSRP) in the USA. Orders are processed manually, not directly by our shopping cart system. You don't have to supply credit card information when placing an online order.

North American Orders. Laurel does not sell factory-direct in the USA or Canada. Online sales orders are filled through distribution. During the ordering process, you will have the chance to select an authorized Laurel distributor, or you can ask Laurel to refer you to a distributor. The distributor will then contact you to quote shipping, tax and duty (where applicable), and arrange for payment.

International Orders. If your ship-to address indicates that you are outside of the USA or Canada and Laurel has a distributor in your country, we will forward your order to that distributor for follow-up. If Laurel does not have a distributor in your country, we will email you an order acknowledgment and a pro forma invoice which states the product price, shipping charges, and wire transfer information, which includes a $25 bank wire transfer fee.

Questions about your order? Please email your distributor or sales@laurels.com
Configured model number LTE60FR
Configured price per model $295
Quantity 1
Extended price $295
Quantity
Transmitter
Type
LTE  4-20 mA & Ethernet output transmitter $295
LT  4-20 mA & RS232/RS485 output transmitter $235
Main Board 6  Standard Main Board $0
Power 0  Isolated 85-264 Vac or 90-300 Vdc $0
1  Isolated 12-32 Vac or 10-48 Vdc $30
Input Type FR  Dual Channel Pulse Input Signal Conditioner $0
