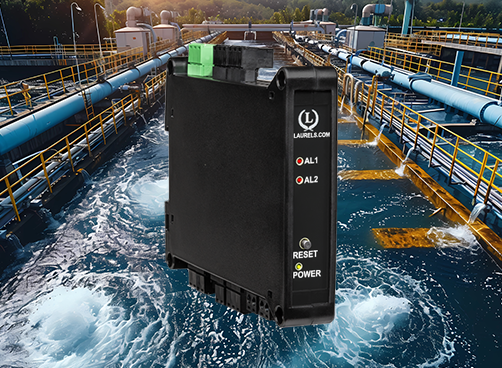

LT DIN Rail Digital Transmitters with Serial Data Communication and Analog Outputs for Analog Input Totalizer Applications

Analog Input Totalizer DIN Rail Transmitter Frequently Asked Questions

Why does the transmitter convert the analog input to a frequency (10 kHz-110 kHz) internally rather than totalizing the analog signal directly?

Documented architecture specifically describes this voltage-to-frequency conversion as the underlying mechanism — since the transmitter's core accuracy and totalizing math are built around measuring period and taking its inverse (the same technique used across the LT Series frequency-based transmitters), converting the analog input to a proportional frequency lets the totalizer use this same well-established, highly accurate timing-based calculation rather than requiring a separate analog-integration approach.

Does selecting a longer gate time (closer to 200 s) change the calculated total, or only how often the reading updates?

Only the update behavior — documented specification specifically states totals are calculated as the product of rate and time in seconds regardless of the selected gate time; the gate time affects how frequently the transmitter refreshes its rate measurement and how the 25 updates/sec figure scales at different signal frequencies, but the underlying total accumulated over any given period is documented as consistent regardless of which gate time was used to compute the intermediate rate readings.

Why is the 25 updates/sec figure specifically tied to "the lowest frequency of 10 kHz and the minimum gate time of 10 ms"?

Documented explanation specifically frames this as the practical floor of the update rate — since the transmitter needs to measure at least one complete period of the underlying frequency to compute a reading, the combination of the lowest converted frequency (10 kHz) and the shortest gate time (10 ms) represents the documented worst-case scenario for how quickly a valid reading can be obtained, making 25/sec the baseline the transmitter is documented as capable of at minimum under these specific conditions.

Does storing totals in nonvolatile memory protect against losing count during a brief power dip, or only a full power-down?

Documented capability specifically states totals are stored in nonvolatile memory "in case of power loss" without further distinguishing between a brief dip and a complete extended outage — nonvolatile memory storage is documented as the mechanism protecting the accumulated total value itself from being lost when power is interrupted, regardless of how long that interruption lasts, since the total is written to memory rather than existing only in volatile, power-dependent storage.

Why does the 0-10V input range have a documented 1.01 MΩ input resistance, so much higher than the 50Ω for 4-20 mA?

Documented specification lists these as the distinct, appropriate input impedances for two fundamentally different signal types — a voltage input like 0-10V is documented with a high input resistance specifically to minimize current draw and loading on the voltage source providing the signal, while a current-loop input like 4-20 mA is documented with a low input resistance since current-loop signals are specifically designed to be measured as a voltage drop across a small, defined resistance (commonly called a burden or sense resistor) without significantly affecting the loop current itself.

Does the 1/rate (time) display function require a separate signal conditioner board from the standard V-to-F converter boards (VF1/VF2/VF3)?

Documented ordering information lists the 1/rate capability as an Extended main board feature, distinct from the VF1/VF2/VF3 signal input board selections (which determine the specific analog input range: 4-20 mA, 0-1 mA, or 0-10V) — this indicates 1/rate is a main-board-level processing feature that can be combined with whichever specific VF signal conditioner board matches the actual sensor's output range, rather than requiring its own dedicated input board.

Can custom curve linearization and square root extraction both be applied to the same input signal, or are they mutually exclusive configuration options?

Documented feature descriptions list square root extraction as available with the Standard main board (for differential pressure flow transducers) and custom curve linearization as an Extended main board capability — since custom curve linearization is documented elsewhere as a general correction technique for genuinely nonlinear signals, and square root extraction addresses a specific, different type of nonlinearity (inherent to differential-pressure flow measurement), the two are documented as addressing different signal characteristics rather than being described as mutually exclusive on the Extended board.

Does the documented accuracy figure (±0.01% FS ±1 count) apply identically across all three input types (0-1 mA, 4-20 mA, 0-10V)?

Documented specification lists a single accuracy figure under the shared "Accuracy at 25°C" row spanning all three input columns, rather than three separate accuracy figures per input type — this indicates the ±0.01% FS ±1 count specification is documented as applying uniformly across all three signal input options, with the input resistance, and maximum current/voltage being the specifications that are documented as genuinely distinct per input type.

Why does the transmitter's zero tempco specification use a "%FS/°C" basis while span tempco uses "%reading/°C" — does this distinction matter practically?

Yes — documented specification lists these with genuinely different bases: span tempco (±0.003% of reading/°C) scales with the actual signal level being measured, while zero tempco (±0.003% FS/°C) is a fixed fraction of full scale regardless of where the reading falls — practically, this means the zero-related drift contributes a roughly constant absolute error across the range, while the span-related drift contributes an error that grows proportionally larger at higher readings within the range.

Does batch control for repetitive fill operations on this transmitter require an external PLC, or can it operate as a standalone controller?

Documented description specifically frames batch control as a capability of the Extended main board itself, typically making use of the transmitter's own optional dual solid state relays — this points to standalone batch-control capability built into the transmitter's own firmware and relay outputs, rather than requiring an external PLC to implement the fill-cycle logic, though the transmitter can certainly also be integrated into a larger PLC-supervised system if desired.

Conveyor Oven Dwell Time & Residence Time Questions From the Field

Why is precise residence (dwell) time control specifically important in continuous conveyor oven processing?

Documented explanation specifically identifies precise residence time control as a key feature of continuous process ovens, alongside programmable temperature profiles, since the combination of time and temperature together determines the final processed result — documented guidance notes that maintaining a product at specified temperatures for certain lengths of time is required for many heating and cooling processes, including heat treating, annealing, and food cooking, making dwell time control just as critical as temperature control itself.

Is conveyor speed a commonly documented method for directly adjusting dwell time in a conveyor oven?

Yes — documented guidance specifically describes fitting a conveyor drive system with a variable frequency drive (VFD) specifically to allow changing conveyor speed, which directly changes the residence time of product in a heated zone; this is documented as a standard method of process flexibility distinct from adjusting the oven's temperature set point.

Do all conveyor ovens use a single, uniform temperature zone, or is zoned temperature control commonly documented as standard practice?

Zoned control is commonly documented — multiple documented sources specifically describe conveyor ovens being divided into distinct zones (such as desolvatation, temperature ramp, dwell, and cooling stages), each with its own independent temperature management, rather than treating the entire oven length as a single uniform temperature zone; this zoning allows different portions of the total dwell time to be held at different process-appropriate temperatures.

Does dwell time monitoring serve a role in detecting whether product is actually present in the oven at a given moment?

Yes — one documented control method specifically uses the passage of a predetermined period of time (functionally equivalent to a dwell-time-based measurement) as an indicator of the absence of product in the oven tunnel, using that absence detection to trigger a temperature setback until product is again detected entering the tunnel, illustrating a documented energy-saving application built directly on dwell/residence time tracking.

Can changing an oven's dwell time have unintended effects on the temperature profile the product actually experiences, beyond simply "more or less time"?

Yes — documented guidance specifically notes that a change in dwell time combined with other parameters, such as a temperature set point or air velocity change, can completely alter the temperature profile the product experiences; this documented interaction means dwell time is not an independent variable considered in isolation from temperature and airflow settings in real process tuning.

Is dwell time monitoring and control equally applicable to food cooking processes as it is to industrial curing or heat-treating processes?

Yes — documented patent-level description specifically frames the general requirement of maintaining a product at specified temperatures for certain lengths of time as applying broadly across heat treating operations, annealing operations, and cooking of food products alike; the underlying principle of controlling time-at-temperature via monitored dwell/residence time is documented as a shared requirement across these otherwise very different process types.

Does overhead monorail or serpentine conveyor routing serve a documented purpose related to dwell time, beyond simply saving factory floor space?

Yes, in part — documented description specifically notes that engineering the conveying path in serpentine or looped circuits can optimize parts dwell time alongside maximizing use of factory floor space; the routing design is documented as serving both purposes together, using the physical path length within a given oven footprint as one lever for achieving the required dwell time.

Is a dwell-time-based process control approach documented as used outside of conveyor ovens, in other time-critical manufacturing processes?

Yes — one documented example describes a glass parison-forming process that monitors specific time intervals during a forming cycle (using detected physical events, such as mold-fill completion, as timing reference points) to control pressure application in subsequent cycles; this illustrates that monitored dwell/time-interval control is documented as a broader manufacturing control principle, not limited specifically to thermal/oven processing.
